Air Cleaner Element Replacement

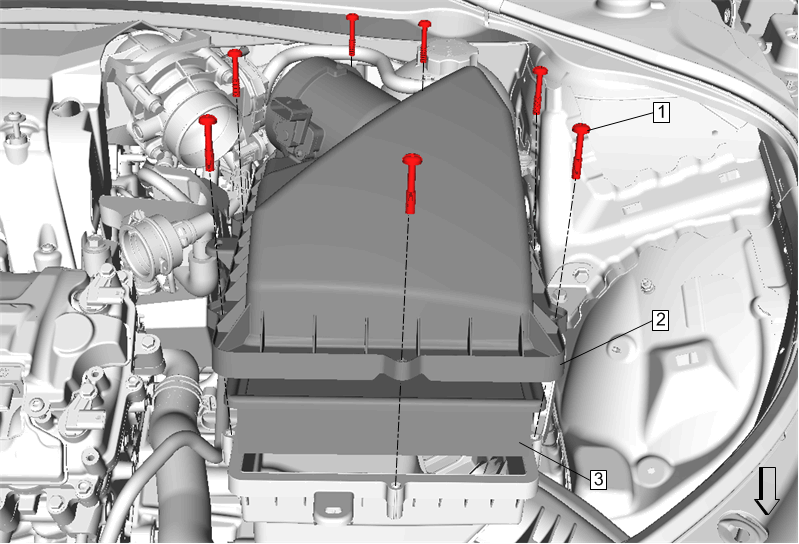

Fig 1: Air Cleaner Element
GM4452610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Unclip the wiring harness from the air cleaner upper cover.
1 Air Cleaner Upper Housing Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
