Starter Shield Replacement

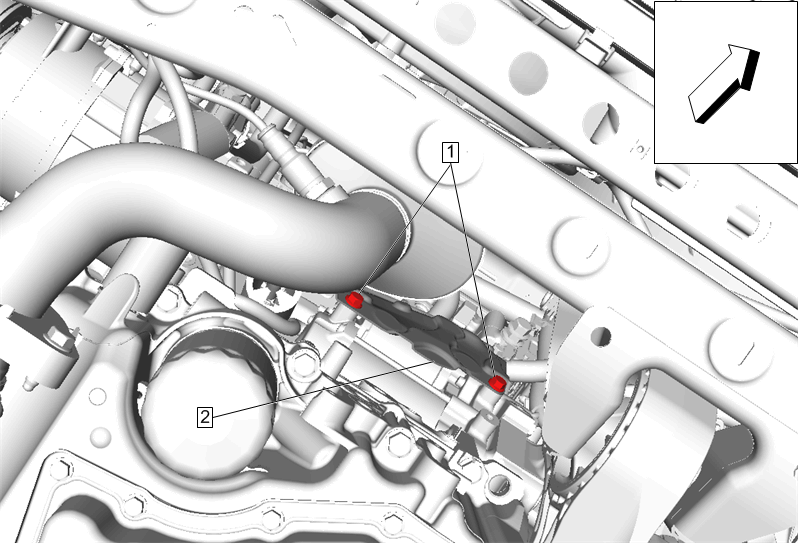

Fig 1: Starter Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Oil Level Indicator Tube Replacement
1	Starter Heat Shield Fastener CAUTION: Refer to Fastener Caution . tighten 9 N.m (80 lb in)
2	Starter Heat Shield
