Installation Procedure

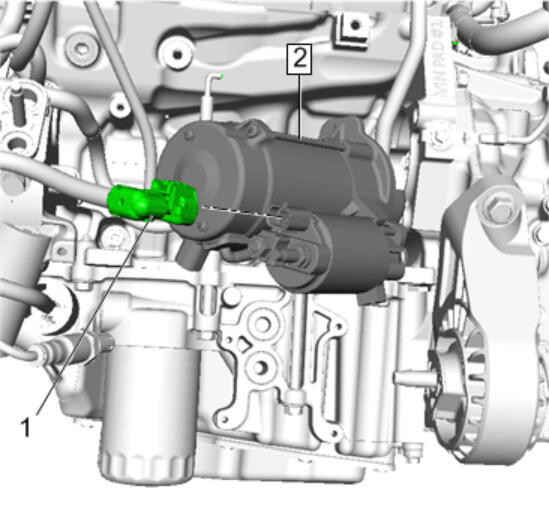

    Fig 1: Electrical Connector And Starter
    GM4287535Courtesy of GENERAL MOTORS COMPANY
  1. Electrical Connector 1 - Connect
  2. Install the starter. 2

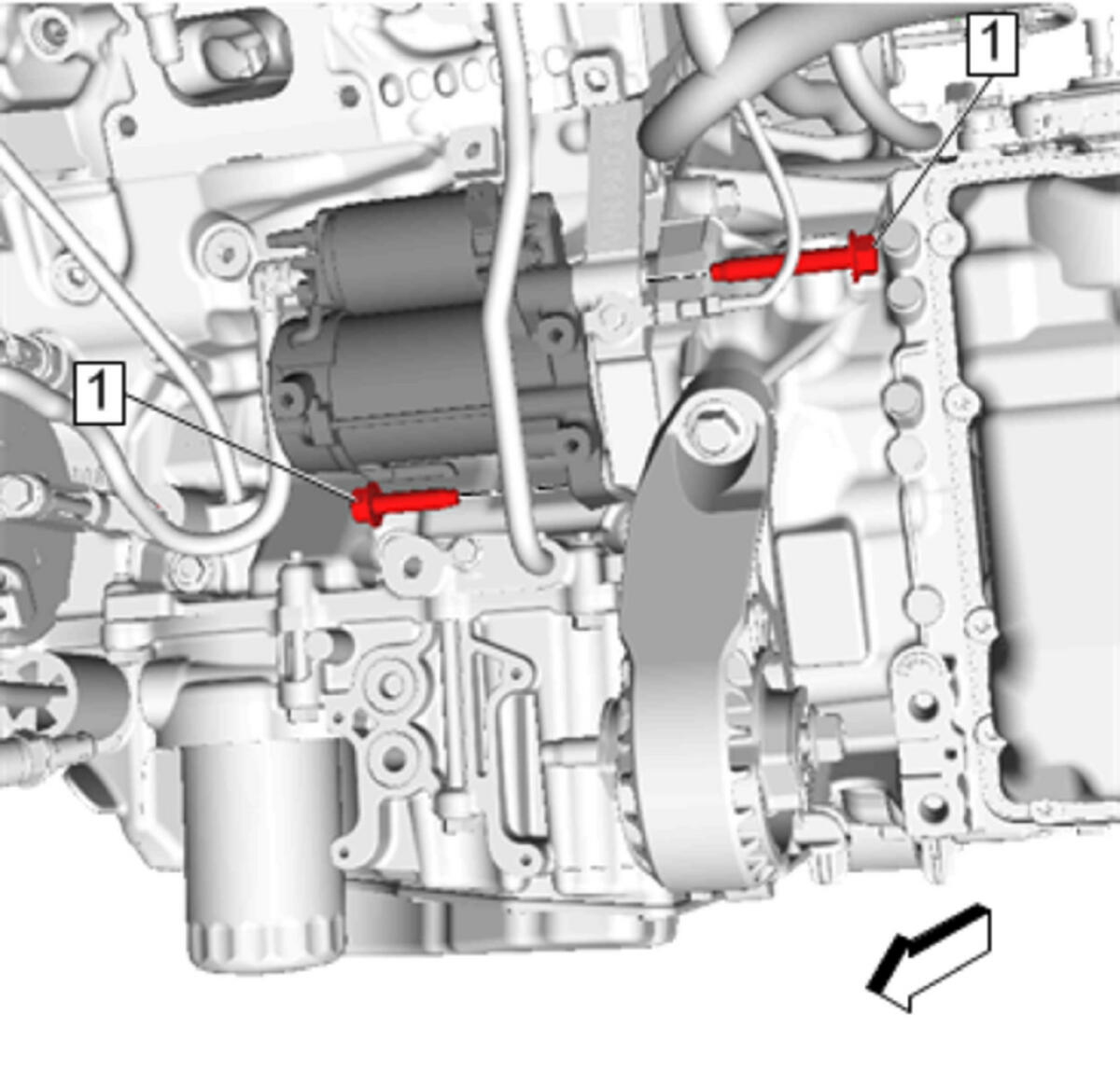

    3. Fig 2: Starter Mounting Bolt
    GM4287534Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  3. Starter Mounting Bolt 1 - Install and tighten 58 N.m (43 lb ft)

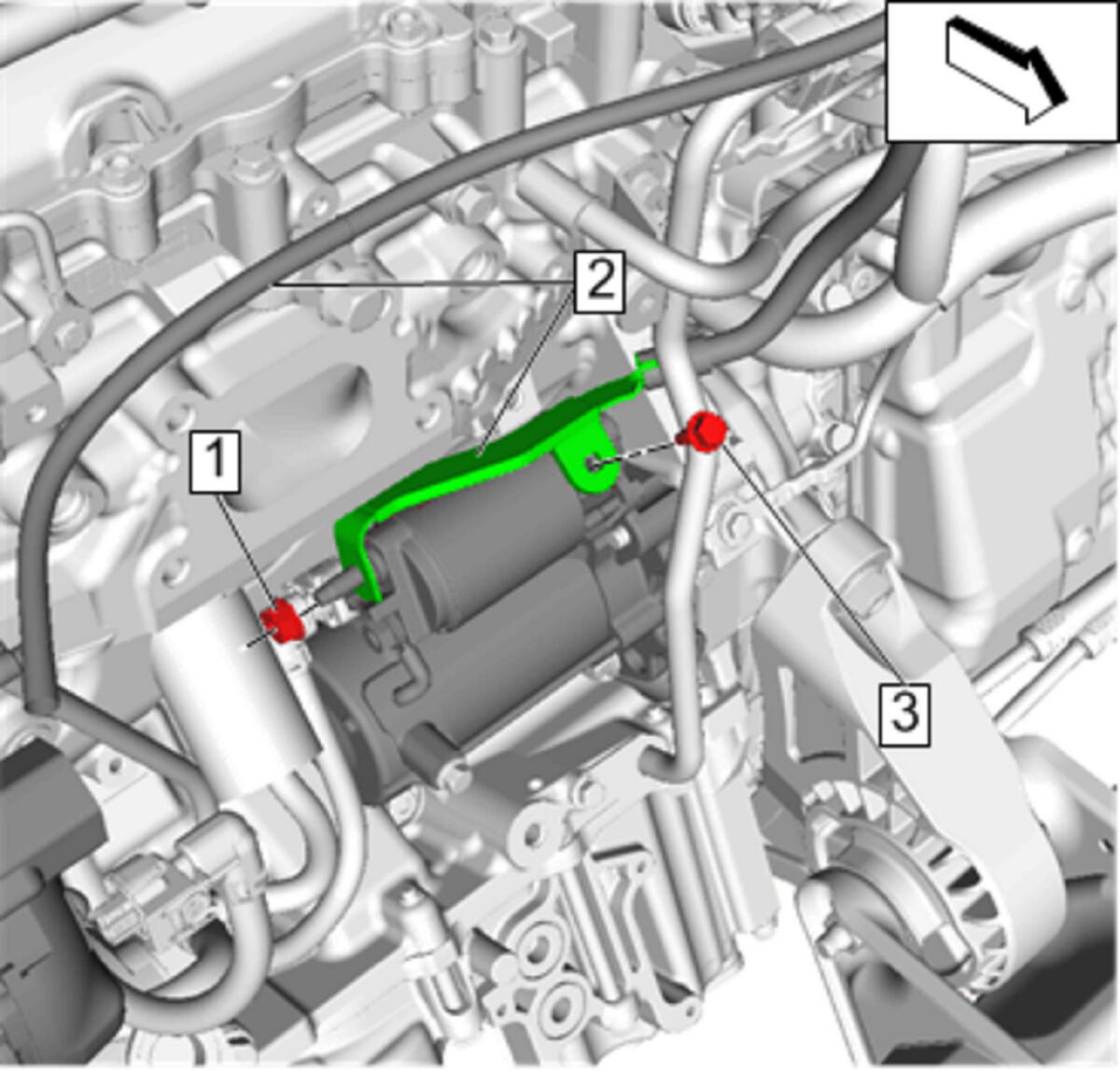

    4. Fig 3: Starter Solenoid Cable Nut And Battery Positive Cable Conduit Fastener
    GM4286416Courtesy of GENERAL MOTORS COMPANY
  4. Battery Positive Cable 2 - Install
  5. Starter Solenoid Cable Nut 1 - Install and tighten 12.5 N.m (111 lb in)
  6. Battery Positive Cable Conduit Fastener 3 - Install and tighten 9 N.m (80 lb in)

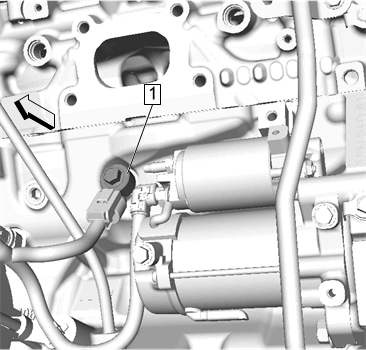

    7. Fig 4: Knock Sensor
    GM4287567Courtesy of GENERAL MOTORS COMPANY
  7. Knock Sensor- Bank 2 (1) - Install - Knock Sensor Replacement - Bank 2

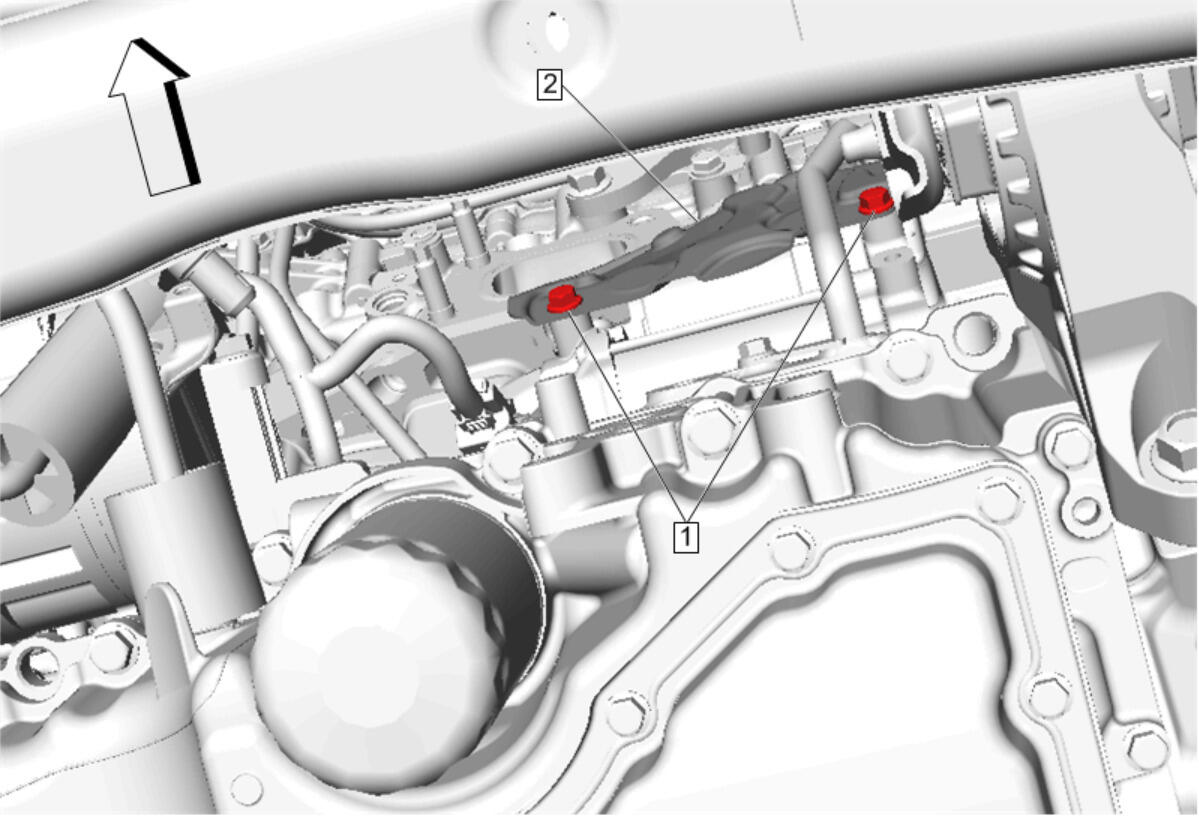

    8. Fig 5: Starter Heat Shield
    GM4286549Courtesy of GENERAL MOTORS COMPANY
  8. Starter Heat Shield 2 - Install - Starter Shield Replacement
  9. Warm Up Three-Way Catalytic Converter- Bank 2 - Install - THREE-WAY CATALYTIC CONVERTER REPLACEMENT
  10. Lower the vehicle.
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
