Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

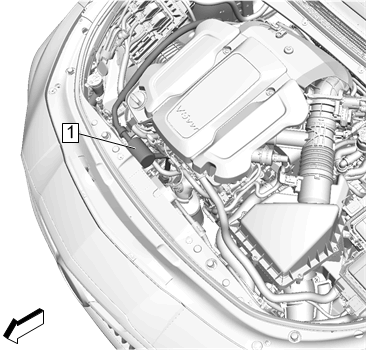

    2. Fig 1: Air Conditioning Compressor Hose
    GM4444590Courtesy of GENERAL MOTORS COMPANY
  2. Air Conditioning Compressor Hose 1 - Remove - Air Conditioning Compressor Hose Replacement
    3. Fig 2: Air Cleaner Outlet Duct
    GM4444592Courtesy of GENERAL MOTORS COMPANY
  3. Air Cleaner Outlet Duct 1 - Remove - Air Cleaner Outlet Duct Replacement

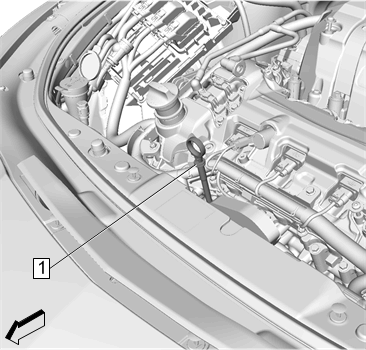

    4. Fig 3: Oil Level Indicator Tube
    GM4444593Courtesy of GENERAL MOTORS COMPANY
  4. Oil Level Indicator Tube 1 - Remove - Oil Level Indicator Tube Replacement
    5. Fig 4: Drive Belt Idler Pulley
    GM4295383Courtesy of GENERAL MOTORS COMPANY
  5. Drive Belt Idler Pulley 2 - Remove - Drive Belt Idler Pulley Replacement

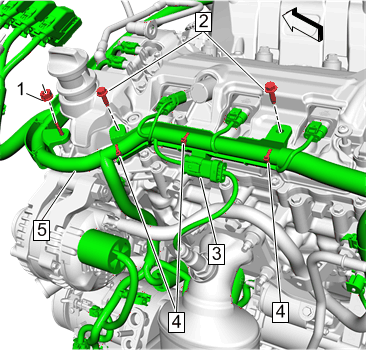

    6. Fig 5: Engine Harness, Straps And Retainers
    GM4639180Courtesy of GENERAL MOTORS COMPANY
  6. Harness Conduit Retainer Nut 1 - Remove
  7. Harness Conduit Retainer Bolt 2 - Remove
  8. Engine Harness 5 - Reposition
  9. Tie Straps 4 - Remove
  10. Connector Retainer 3 - Disengage

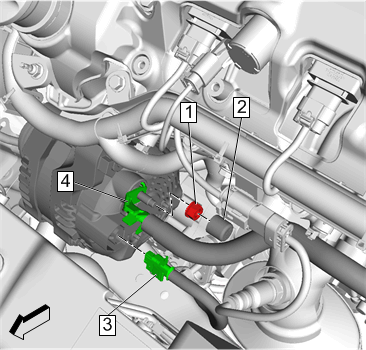

    11. Fig 6: Cap, Nut, Cable And Connector
    GM4444636Courtesy of GENERAL MOTORS COMPANY
  11. Protective Cap 2 - Remove
  12. Generator Nut 1 - Remove
  13. Battery Positive Cable 4 - Remove
  14. Electrical Connector 3 - Disconnect

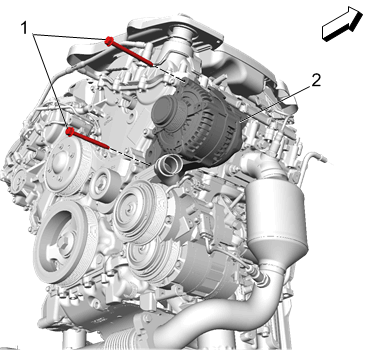

    15. Fig 7: Generator
    GM4444639Courtesy of GENERAL MOTORS COMPANY
  15. Generator Bolt 1 - Remove
  16. Remove the generator.2
