Engine Wiring Harness Fuse Block Bracket Replacement

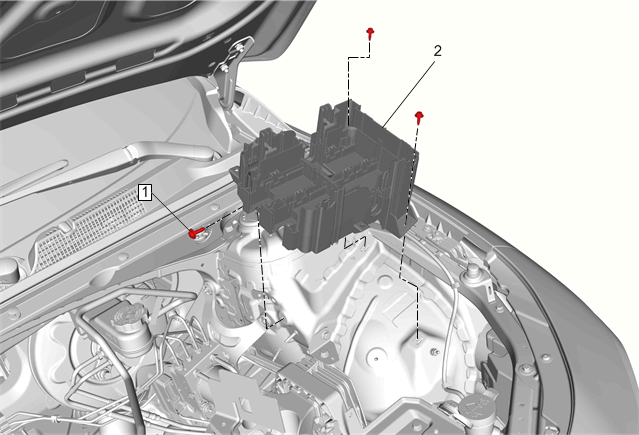

Fig 1: Engine Wiring Harness Fuse Block Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Compartment Fuse Block Replacement .
1	Engine Wiring Harness Fuse Block Bracket Bolt CAUTION: Refer to Fastener Caution . tighten  9 N.m (80 lb in)
2	Engine Wiring Harness Fuse Block Bracket
