Installation Procedure
- Battery Sensor Module 2 - Install
- Battery Post Negative Cable Clamp Nut 1 - Install and tighten 5 N.m (44 lb in)
- Battery Negative Cable 4 - Install
- Place a suitable open ended wrench on the battery sensor terminal, to prevent damage to the battery sensor. 2
- Battery Negative Cable Nut 1 - Install and tighten 16 N.m (12 lb ft)
- Electrical Connector 3 - Connect

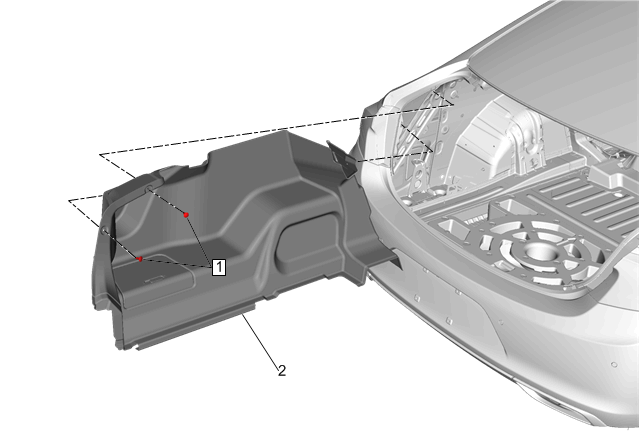

- Rear Compartment Side Trim-Left Side 2 - Remove - Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
CAUTION:
Refer to Fastener Caution
