Installation Procedure

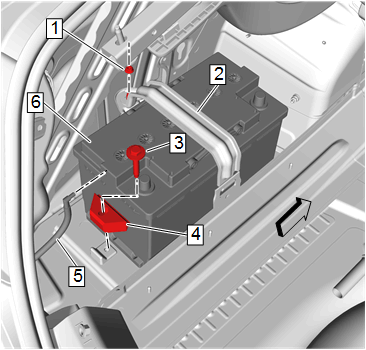

    Fig 1: Battery Hold Down Retainer Nut
    GM4262175Courtesy of GENERAL MOTORS COMPANY
  1. Battery 6 - Install
  2. Battery Hold Down Retainer 2 - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Nut 1 - Install and tighten 9 N.m (80 lb in)
  4. Battery Hold Down Retainer 4 - Install
  5. Battery Hold Down Bolt 3 - Install and tighten 22 N.m (16 lb ft)
  6. Battery Vent Hose 5 - Connect
    7. Fig 2: Battery Distribution Fuse Block
    GM4262173Courtesy of GENERAL MOTORS COMPANY
  7. Battery Distribution Fuse Block 2 - Install
  8. Battery Positive Post Clamp Nut 1 - tighten 4.5 N.m (40 lb in)
    9. Fig 3: Battery Distribution Fuse Block Cover
    GM4262102Courtesy of GENERAL MOTORS COMPANY
  9. Battery Distribution Fuse Block Cover 1 - Install
  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

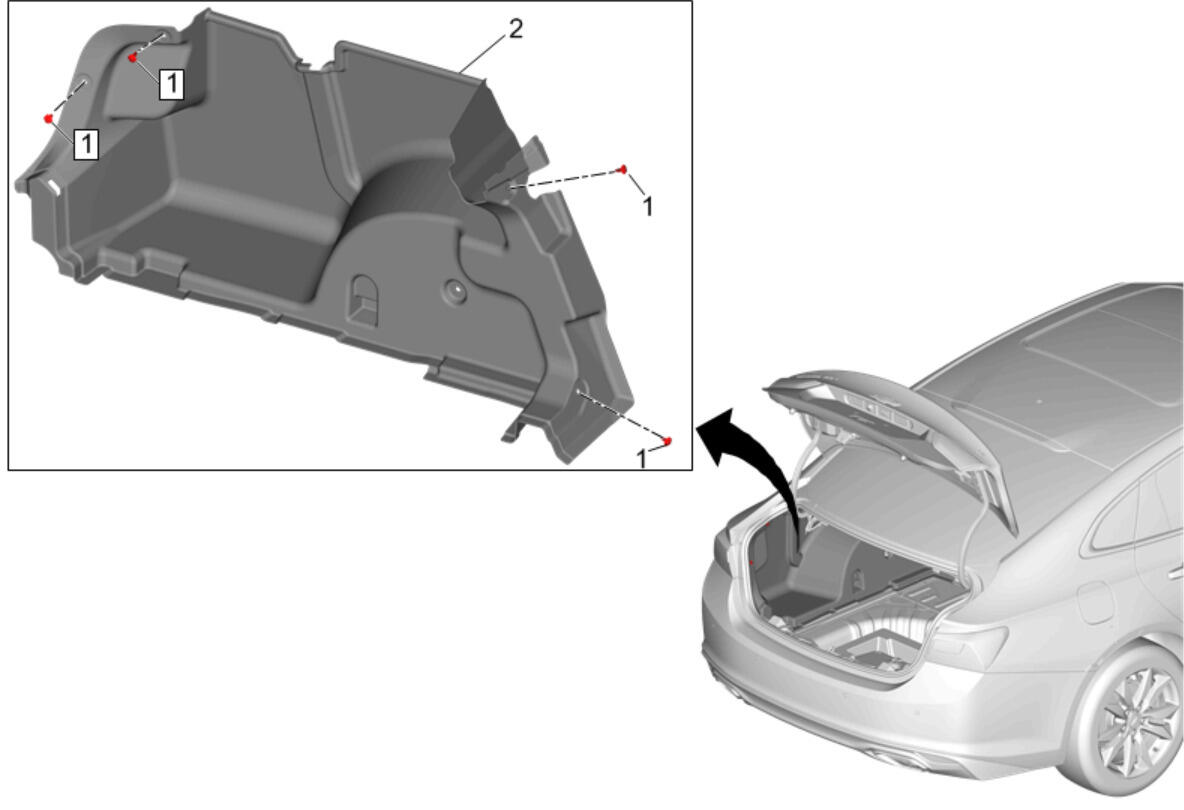

    11. Fig 4: Rear Compartment Side Trim - Left Side (Without HP4)
    GM4215214Courtesy of GENERAL MOTORS COMPANY
  11. Rear Compartment Side Trim Panel 2 - Install - Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
