Installation Procedure

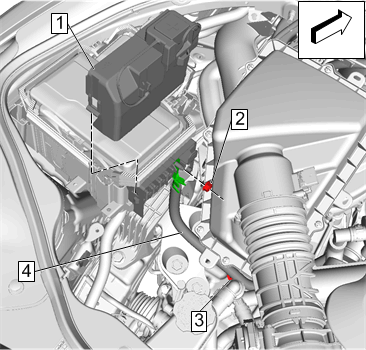

    Fig 1: Battery Positive Cable
    GM4436087Courtesy of GENERAL MOTORS COMPANY
  1. Battery Positive Cable 4 - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Positive Cable Nut 2 - Install and tighten 16 N.m (12 lb ft)
  3. Battery Positive Cable Retainer 3 - Engage
  4. Engine Wiring Harness Junction Block Cover 1 - Install

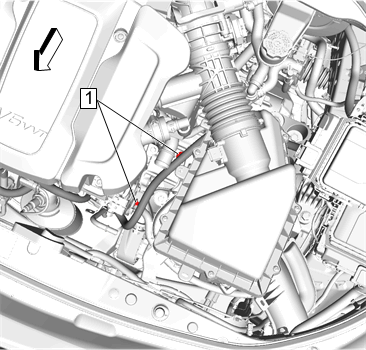

    5. Fig 2: Battery Positive Cable Retainer
    GM4434044Courtesy of GENERAL MOTORS COMPANY
  5. Battery Positive Cable Retainer 1 - Engage

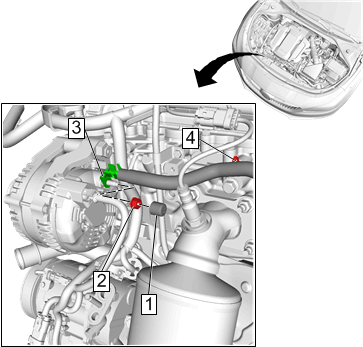

    6. Fig 3: Battery Positive Cable
    GM4433681Courtesy of GENERAL MOTORS COMPANY
  6. Battery Positive Cable Retainer 4 - Engage
  7. Battery Positive Cable 3 - Install
  8. Battery Positive Cable Nut 2 - Install and tighten 15 N.m (11 lb ft)
  9. Protective Cap 1 - Install
    10. Fig 4: Starter Solenoid Cable Nut And Battery Positive Cable Conduit Fastener
    GM4286416Courtesy of GENERAL MOTORS COMPANY
  10. Battery Positive and Negative Cable 2 - Install
  11. Battery Positive Cable Nut 1 - Install and tighten 12.5 N.m (111 lb in)
  12. Battery Positive and Negative Cable Conduit Bolt 3 - Install and tighten 9 N.m (80 lb in)
    13. Fig 5: Starter Heat Shield
    GM4430574Courtesy of GENERAL MOTORS COMPANY
  13. Starter Heat Shield 2 - Install - Starter Shield Replacement

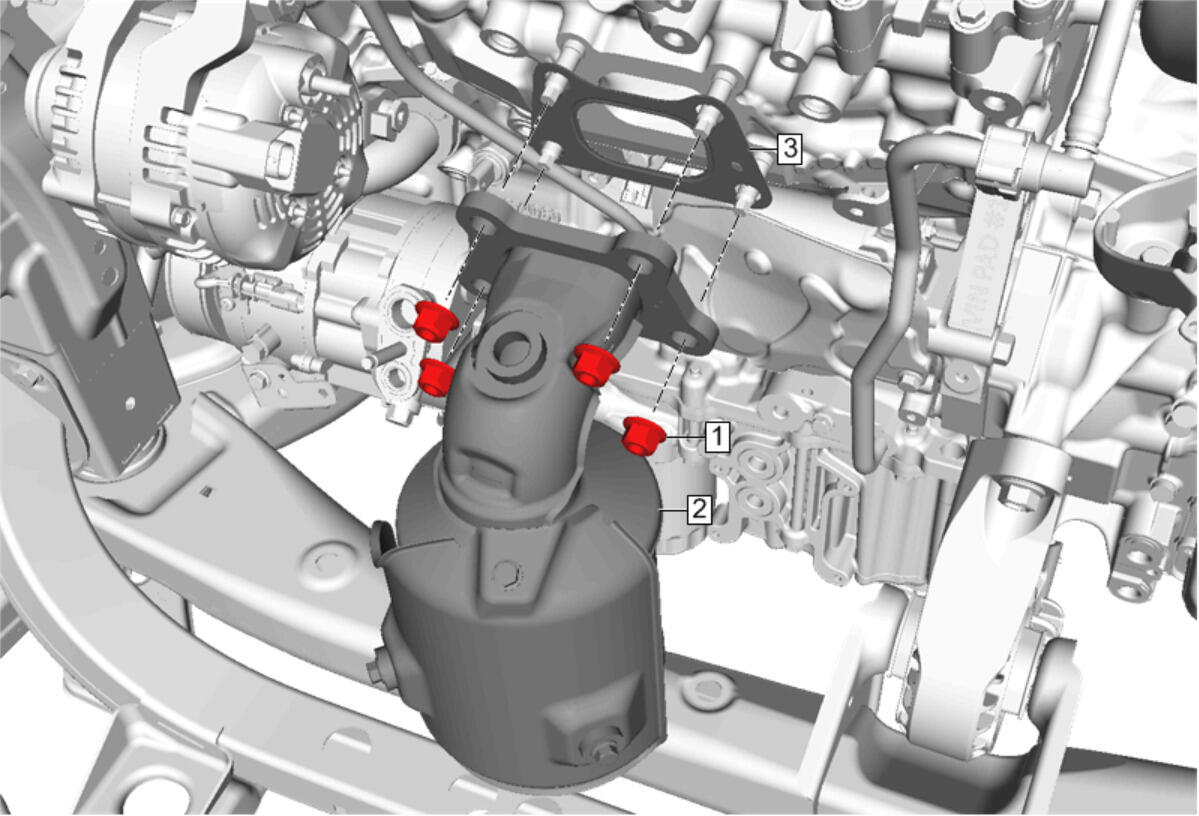

    14. Fig 6: Warm Up Three-Way Catalytic Converter
    GM4288006Courtesy of GENERAL MOTORS COMPANY
  14. Warm Up Three-Way Catalytic Converter 2 - Install - THREE-WAY CATALYTIC CONVERTER REPLACEMENT
  15. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
