Installation Procedure

    Fig 1: Battery Positive Cable
    GM4279375Courtesy of GENERAL MOTORS COMPANY
  1. Battery Positive Cable 1 - Install

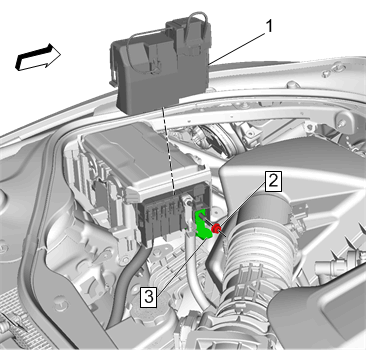

    2. Fig 2: Battery Positive Cable
    GM4432770Courtesy of GENERAL MOTORS COMPANY
  2. Battery Positive Cable 3 - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Positive Cable Nut 2 - Install and tighten 16 N.m (12 lb ft)
  4. Engine Wiring Harness Junction Block Cover 1 - Install

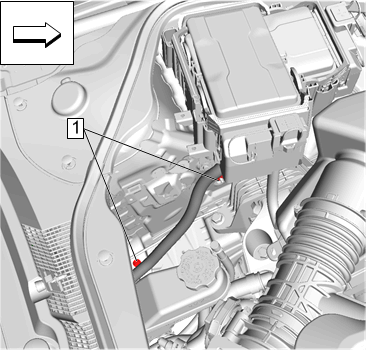

    5. Fig 3: Battery Positive Cable Retainer Nut
    GM4432759Courtesy of GENERAL MOTORS COMPANY
  5. Battery Positive Cable Retainer 1 - Engage

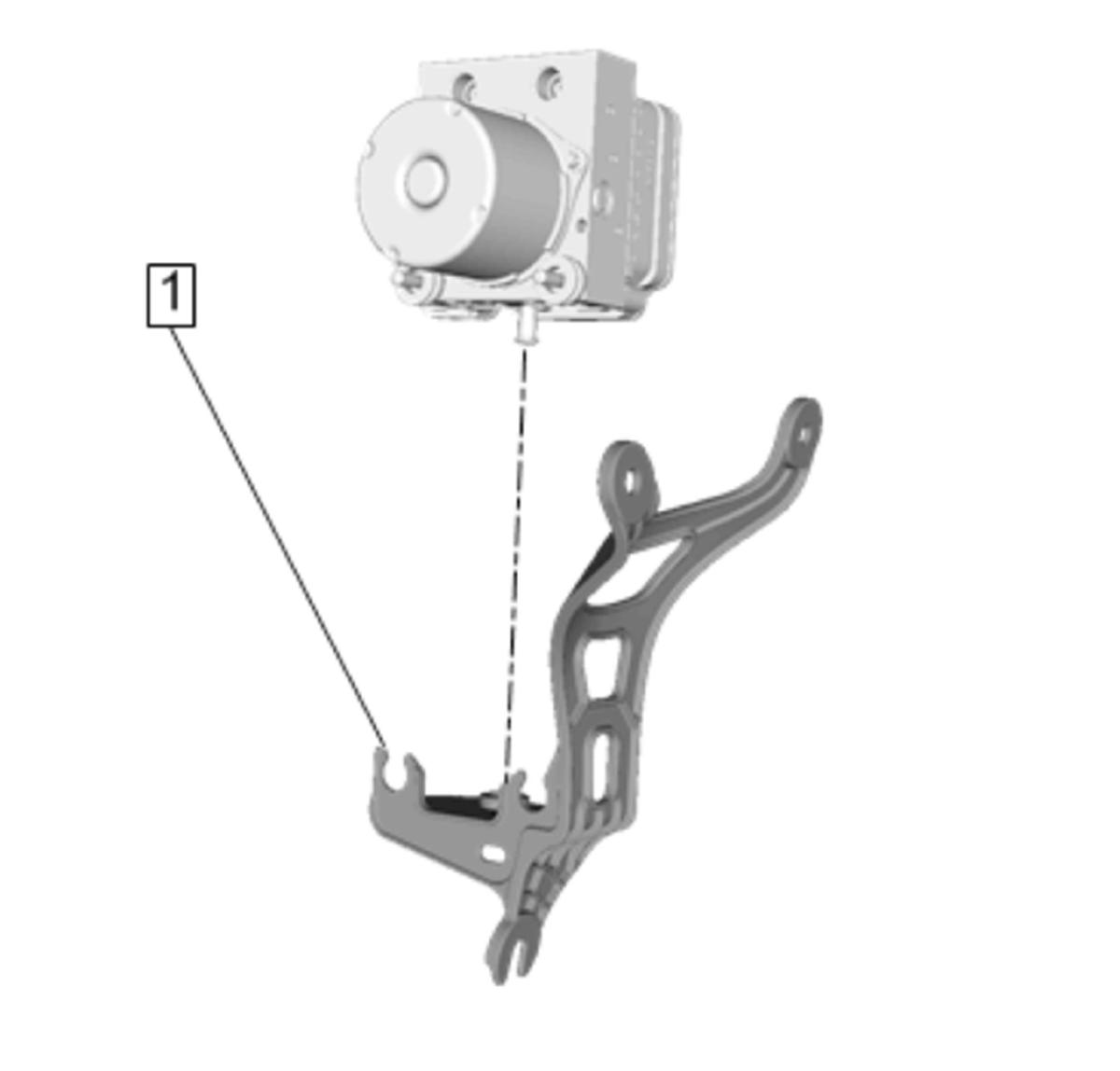

    6. Fig 4: Brake Pressure Modulator Valve Bracket
    GM4299248Courtesy of GENERAL MOTORS COMPANY
  6. Brake Pressure Modulator Valve Bracket - Install - Brake Pressure Modulator Valve Bracket Replacement

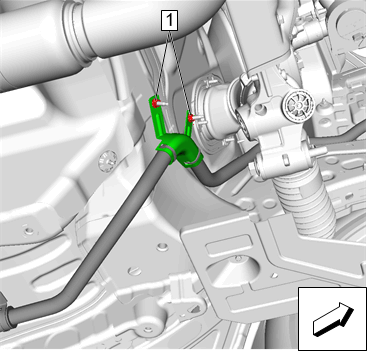

    7. Fig 5: Battery Positive Cable Retainer Nut
    GM4432806Courtesy of GENERAL MOTORS COMPANY
  7. Battery Positive Cable Retainer Nut 1 - Install and tighten 9 N.m (80 lb in)
    8. Fig 6: Battery Positive Cable Retainer Nut
    GM4279371Courtesy of GENERAL MOTORS COMPANY
  8. Battery Positive Cable Retainer Nut 1 - Install and tighten 9 N.m (80 lb in)
    9. Fig 7: Battery Positive Cable Retainer Bolt And Nut
    GM4279370Courtesy of GENERAL MOTORS COMPANY
  9. Battery Positive Cable Retainer Bolt 1 - Install and tighten 9 N.m (80 lb in)
  10. Battery Positive Cable Retainer Nut 2 - Install and tighten 9 N.m (80 lb in)
    11. Fig 8: Pass-through Grommet
    GM4279366Courtesy of GENERAL MOTORS COMPANY
  11. Pass-through Grommet 2 - Install
  12. Pass-through Grommet Fastener 1 - Install and tighten 9 N.m (80 lb in)
    13. Fig 9: Battery Positive Cable
    GM4279365Courtesy of GENERAL MOTORS COMPANY
  13. Battery Positive Cable 1 - Install
  14. Battery Positive Cable Nut 2 - Install and tighten 16 N.m (12 lb ft)
  15. Battery Positive Cable Retainer 3 - Engage
    16. Fig 10: Battery Distribution Fuse Block Cover
    GM4262102Courtesy of GENERAL MOTORS COMPANY
  16. Battery Distribution Fuse Block Cover 1 - Install
  17. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
    18. Fig 11: Rear Compartment Side Trim - Left Side (Without HP4)
    GM4215214Courtesy of GENERAL MOTORS COMPANY
  18. Rear Compartment Side Trim Panel 2 - Install - Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
