Installation Procedure

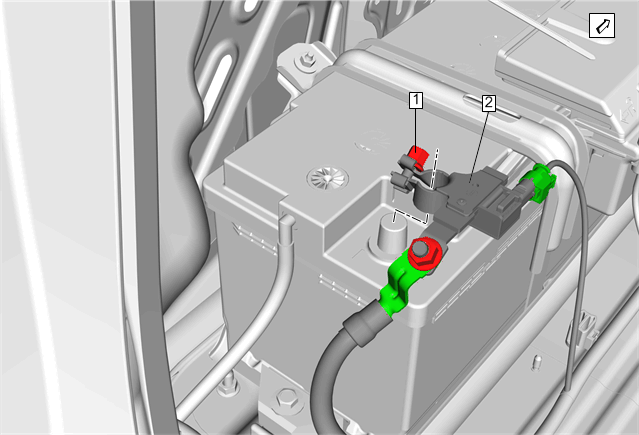

    Fig 1: Battery Sensor Module
    GM4353072Courtesy of GENERAL MOTORS COMPANY
  1. Battery Sensor Module 2 - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut 1 - Install and tighten 5 N.m (44 lb in)
    3. Fig 2: Rear Compartment Side Trim - Left Side (Without HP4)
    GM4215214Courtesy of GENERAL MOTORS COMPANY
  3. Rear Compartment Side Trim Panel 1 - Install
