Removal Procedure

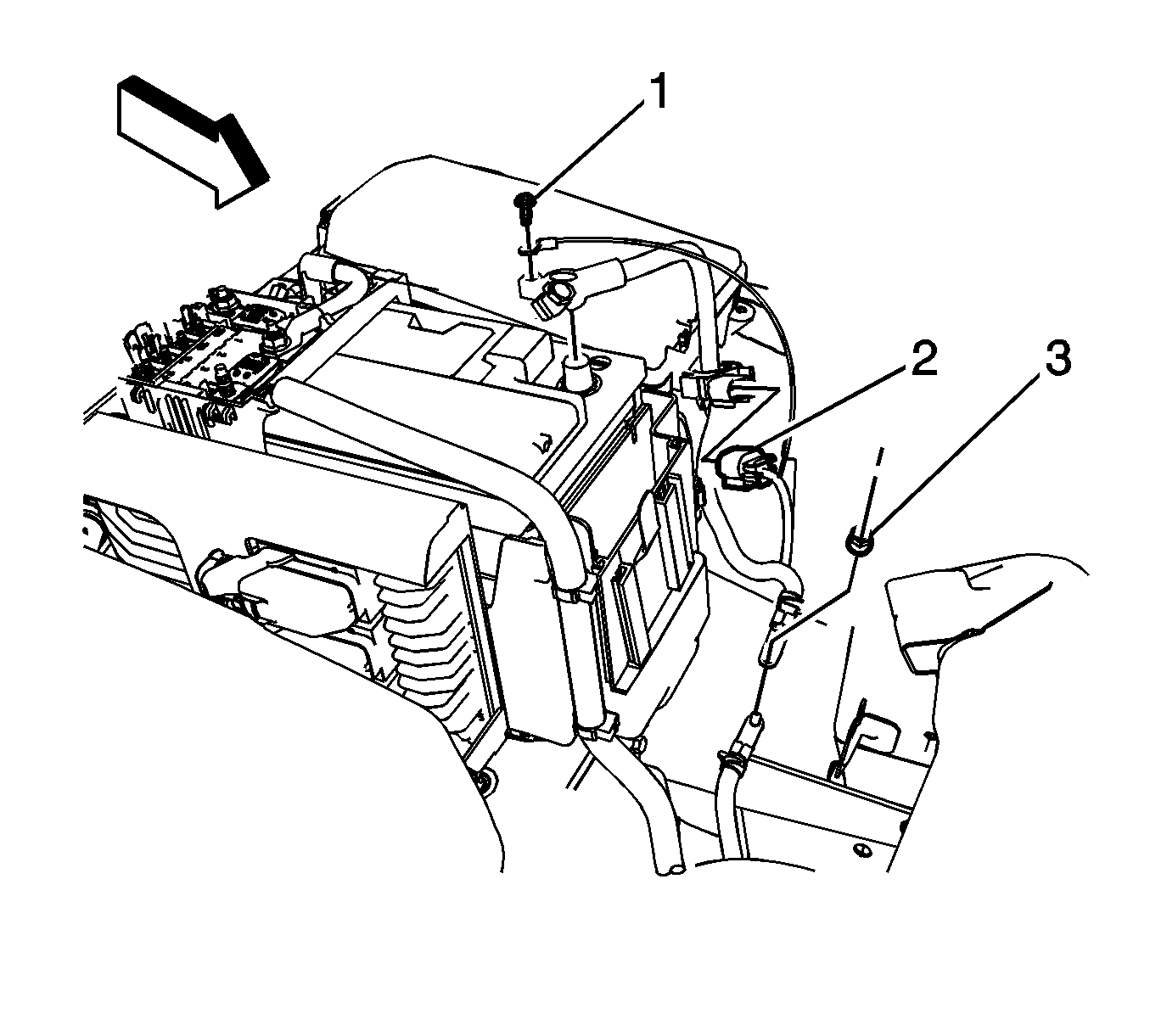

    Fig 1: Body Harness Electrical Connector And Negative Battery Cable Frame Ground Ring Terminal Nut
    GM2195939Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the body harness electrical connector (2) from the battery current sensor.
  3. Remove the negative battery cable frame ground ring terminal nut (3) and detach the negative battery ring terminal.

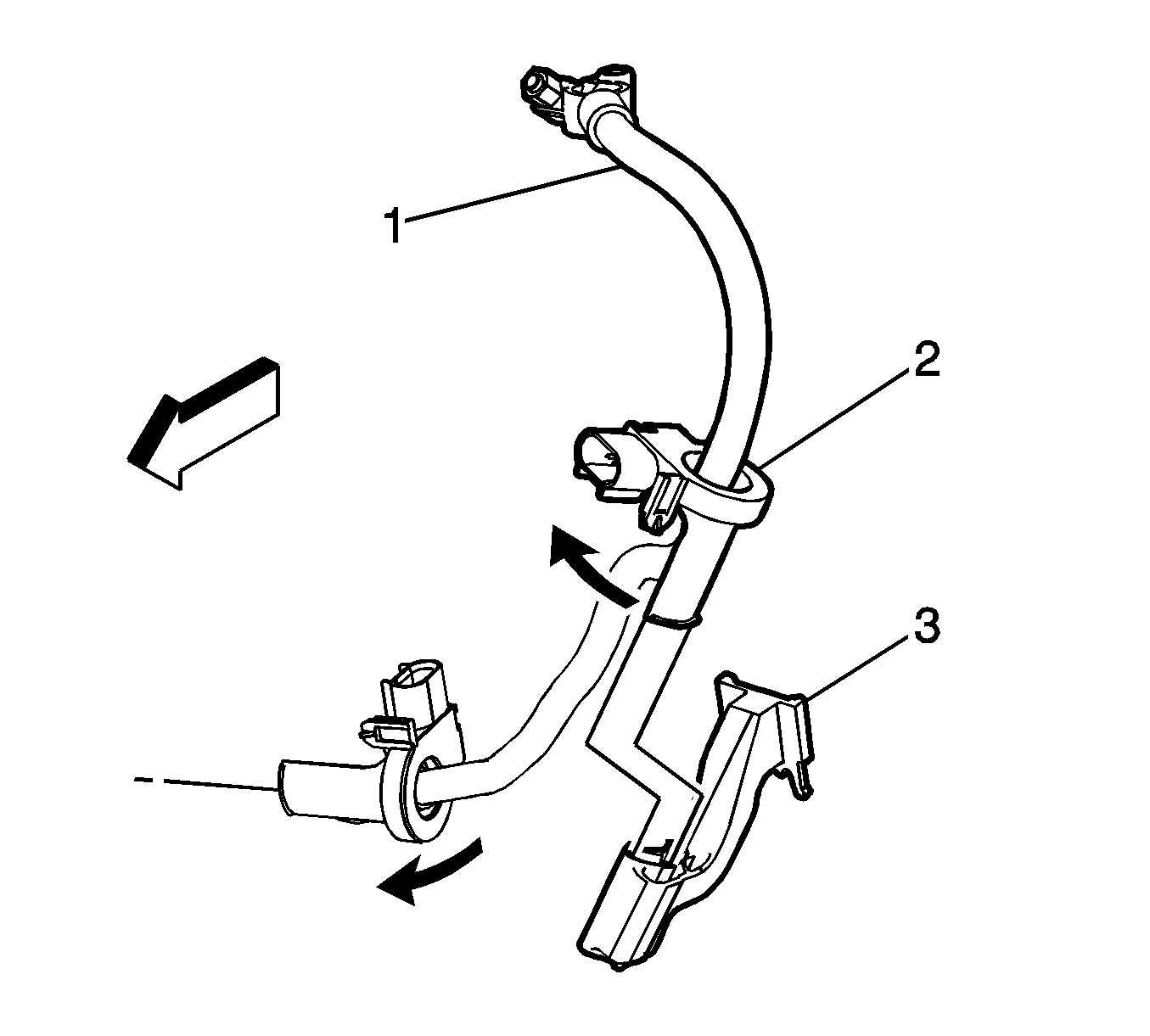

    4. Fig 2: Battery Current Sensor Components
    GM2202162Courtesy of GENERAL MOTORS COMPANY
  4. Detach the battery current sensor (2) from the current sensor bracket (3).
  5. Slide the sensor from the negative battery cable (1).
