Installation Procedure

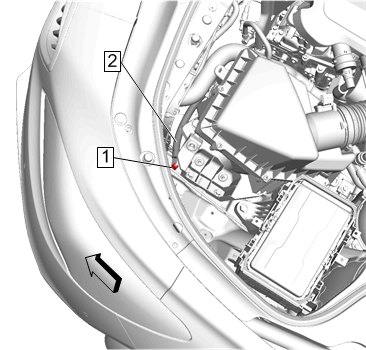

    Fig 1: Auxiliary Battery Negative Cable
    GM4432419Courtesy of GENERAL MOTORS COMPANY
  1. Auxiliary Battery Negative Cable 2 - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Auxiliary Battery Negative Cable Fastener 1 - Install and tighten 9 N.m (80 lb in)
  3. Intake Air Duct - Install - Intake Air Duct Replacement
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle

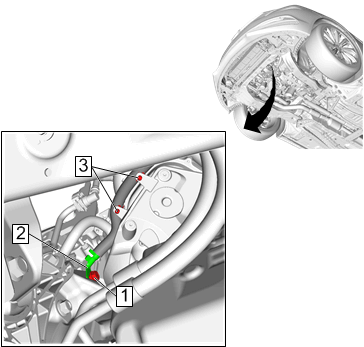

    5. Fig 2: Auxiliary Battery Negative Cable
    GM4432417Courtesy of GENERAL MOTORS COMPANY
  5. Retainer 3 - Engage
  6. Auxiliary Battery Negative Cable 2 - Install
  7. Auxiliary Battery Negative Cable Fastener 1 - Install and tighten 40 N.m (30 lb ft)
  8. Lower the vehicle.
