Removal Procedure

WARNING:

Brake Dust Warning

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

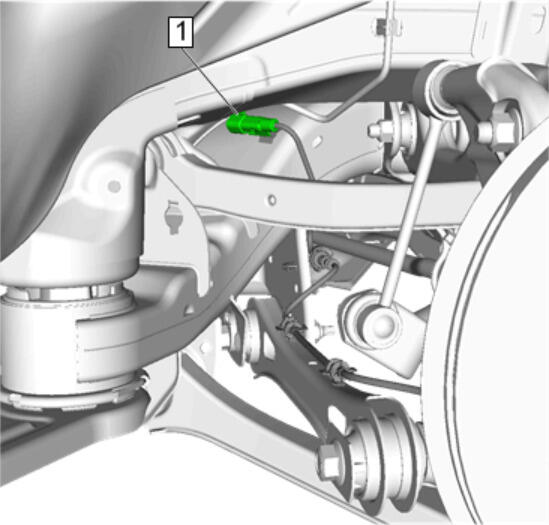

    3. Fig 1: Wheel Speed Sensor Electrical Connector
    GM4381115Courtesy of GENERAL MOTORS COMPANY
  3. Wheel Speed Sensor Electrical Connector 1 - Disconnect

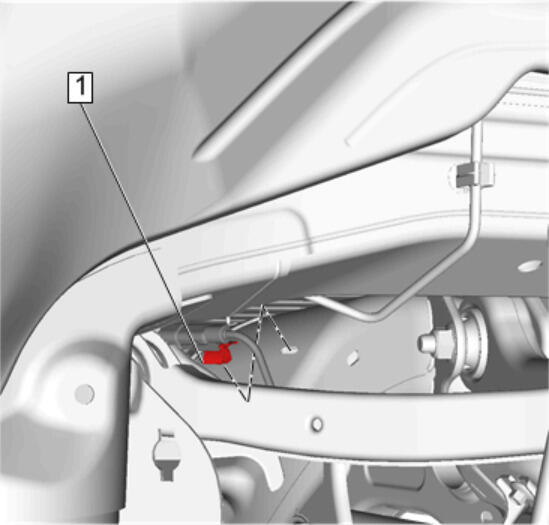

    4. Fig 2: Retainer At Rear Suspension Cradle
    GM4381119Courtesy of GENERAL MOTORS COMPANY
  4. Retainer 1 @Rear Suspension Cradle - Release

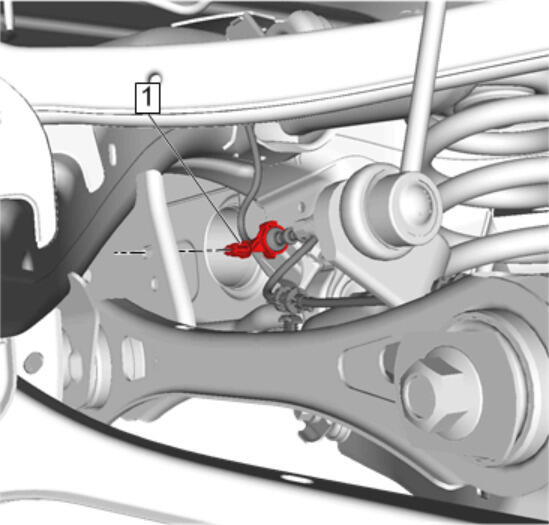

    5. Fig 3: Retainer At Rear Suspension Cradle
    GM4381124Courtesy of GENERAL MOTORS COMPANY
  5. Retainer 1 @Rear Suspension Cradle - Release

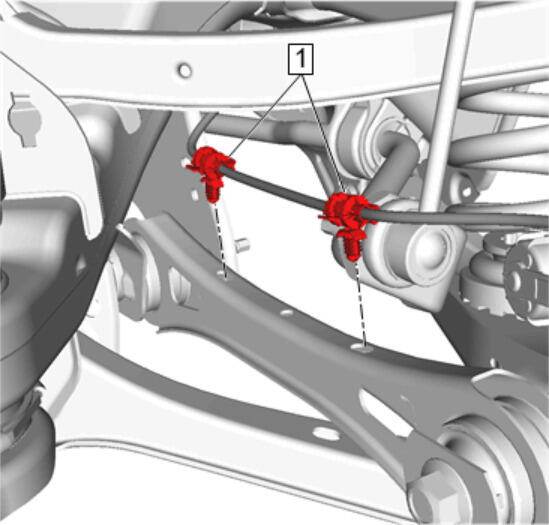

    6. Fig 4: Retainer At Rear Suspension Upper Trailing Link
    GM4381129Courtesy of GENERAL MOTORS COMPANY
  6. Retainer 1 @Rear Suspension Upper Trailing Link - Release

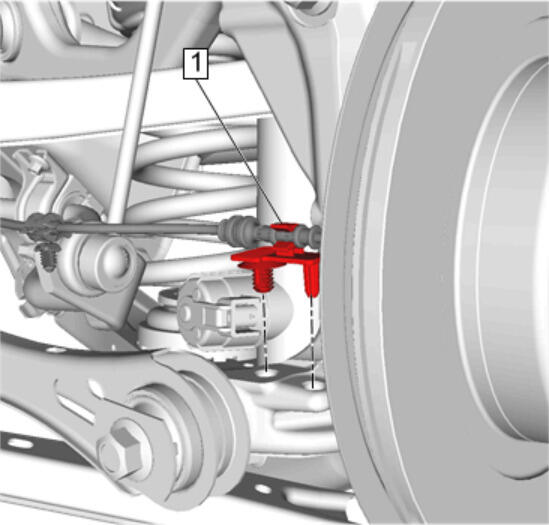

    7. Fig 5: Retainer At Rear Suspension Knuckle
    GM4381146Courtesy of GENERAL MOTORS COMPANY
  7. Retainer 1 @Rear Suspension Knuckle - Release

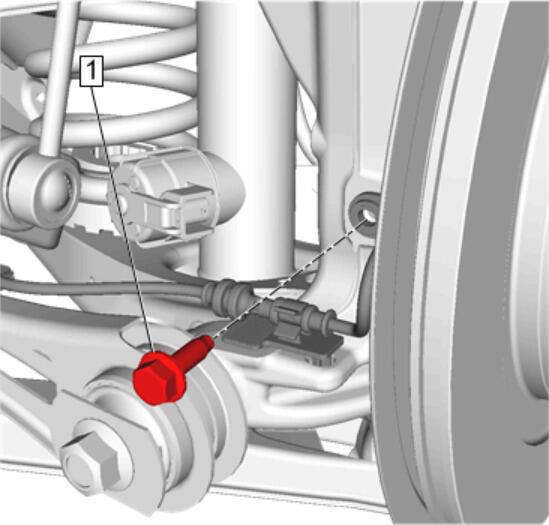

    8. Fig 6: Wheel Speed Sensor Bolt
    GM4381161Courtesy of GENERAL MOTORS COMPANY
  8. Wheel Speed Sensor Bolt 1 - Remove

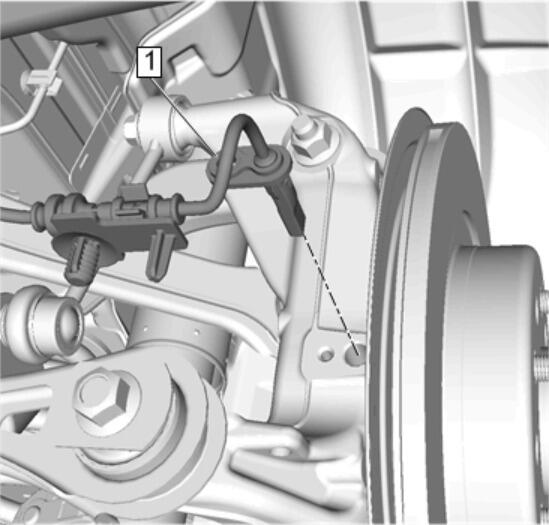

    9. Fig 7: Wheel Speed Sensor
    GM4381176Courtesy of GENERAL MOTORS COMPANY
  9. Wheel Speed Sensor 1 - Remove
