Installation Procedure

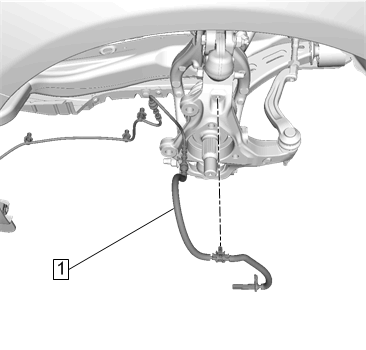

    Fig 1: Wheel Speed Sensor
    GM4421636Courtesy of GENERAL MOTORS COMPANY
  1. Wheel Speed Sensor 1 - Install

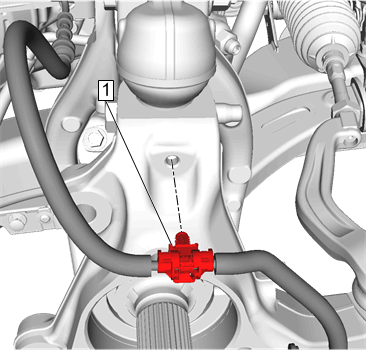

    2. Fig 2: Retainer At Steering Knuckle
    GM4381103Courtesy of GENERAL MOTORS COMPANY
  2. Retainer 1 @Steering Knuckle - Secure

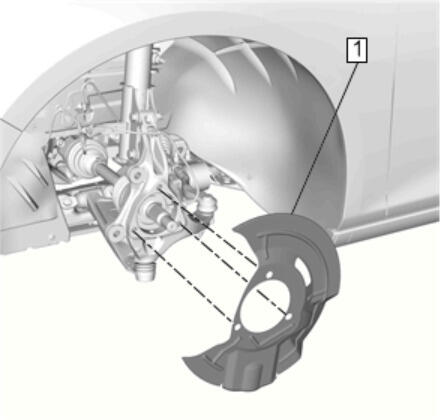

    3. Fig 3: Front Brake Shield
    GM4216997Courtesy of GENERAL MOTORS COMPANY
  3. Front Brake Shield 1 - Install - Front Brake Shield Replacement

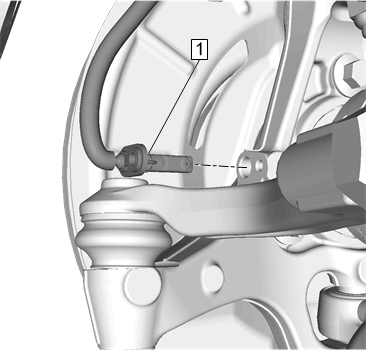

    4. Fig 4: Wheel Speed Sensor
    GM4381112Courtesy of GENERAL MOTORS COMPANY
  4. Wheel Speed Sensor 1 - Install

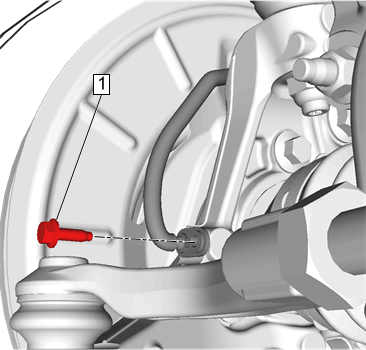

    5. Fig 5: Wheel Speed Sensor Bolt
    GM4381108Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  5. Wheel Speed Sensor Bolt 1 - Install and tighten 9 N.m (80 lb in)

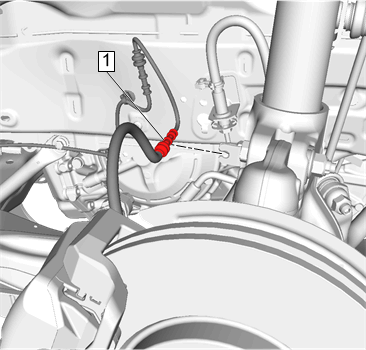

    6. Fig 6: Retainer At Bracket
    GM4381097Courtesy of GENERAL MOTORS COMPANY
  6. Retainer 1 @Bracket - Secure

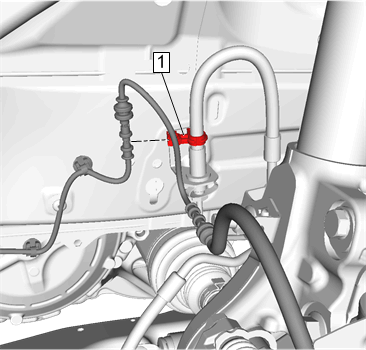

    7. Fig 7: Retainer At Front Brake Hose
    GM4381093Courtesy of GENERAL MOTORS COMPANY
  7. Retainer 1 @Front Brake Hose - Secure

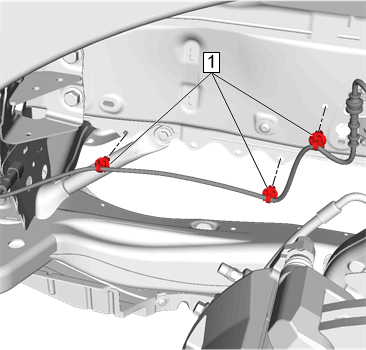

    8. Fig 8: Retainer At Side Rail
    GM4381087Courtesy of GENERAL MOTORS COMPANY
  8. Retainer 1 @Side Rail - Secure

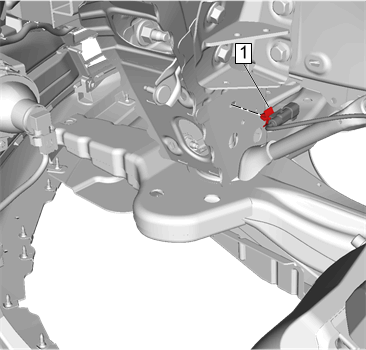

    9. Fig 9: Retainer At Radiator Support
    GM4381079Courtesy of GENERAL MOTORS COMPANY
  9. Retainer 1 @Radiator Support - Secure

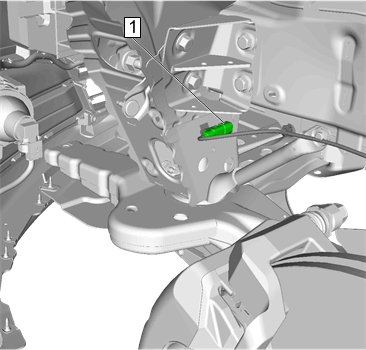

    10. Fig 10: Wheel Speed Sensor Electrical Connector
    GM4381074Courtesy of GENERAL MOTORS COMPANY
  10. Wheel Speed Sensor Electrical Connector 1 - Connect
  11. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement
  12. Verify the repair is complete. Diagnostic Repair Verification
