Installation Procedure

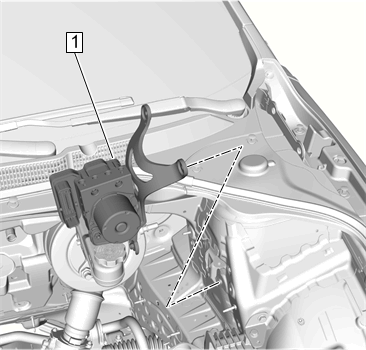

    Fig 1: Electronic Traction Control Brake Pressure Modulator Valve
    GM4774862Courtesy of GENERAL MOTORS COMPANY
  1. Electronic Traction Control Brake Pressure Modulator Valve 1 - Install

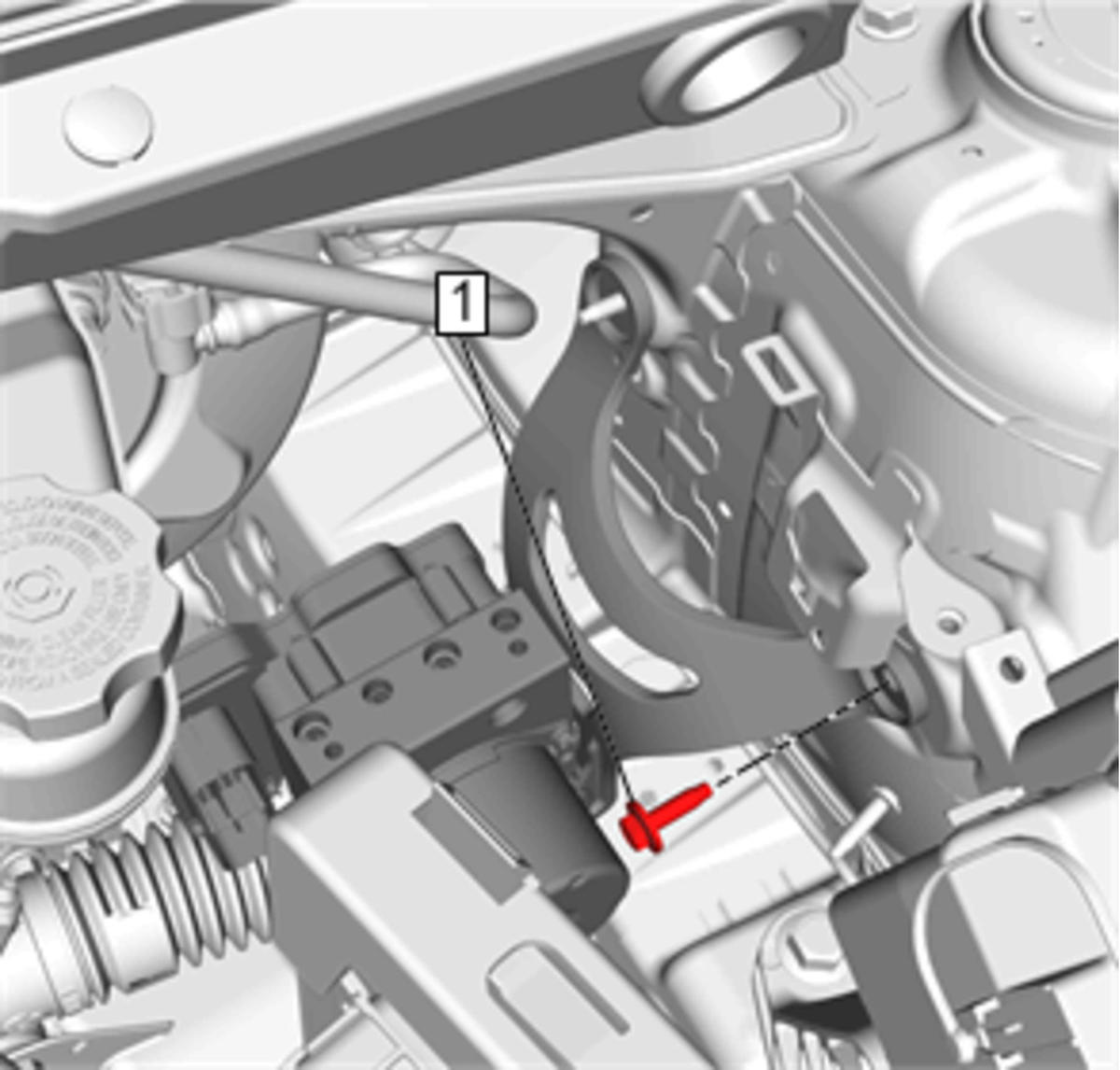

    2. Fig 2: Brake Pressure Modulator Valve Bracket Bolt
    GM4213874Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Brake Pressure Modulator Valve Bracket Bolt 1 - Install and tighten 9 N.m (80 lb in)

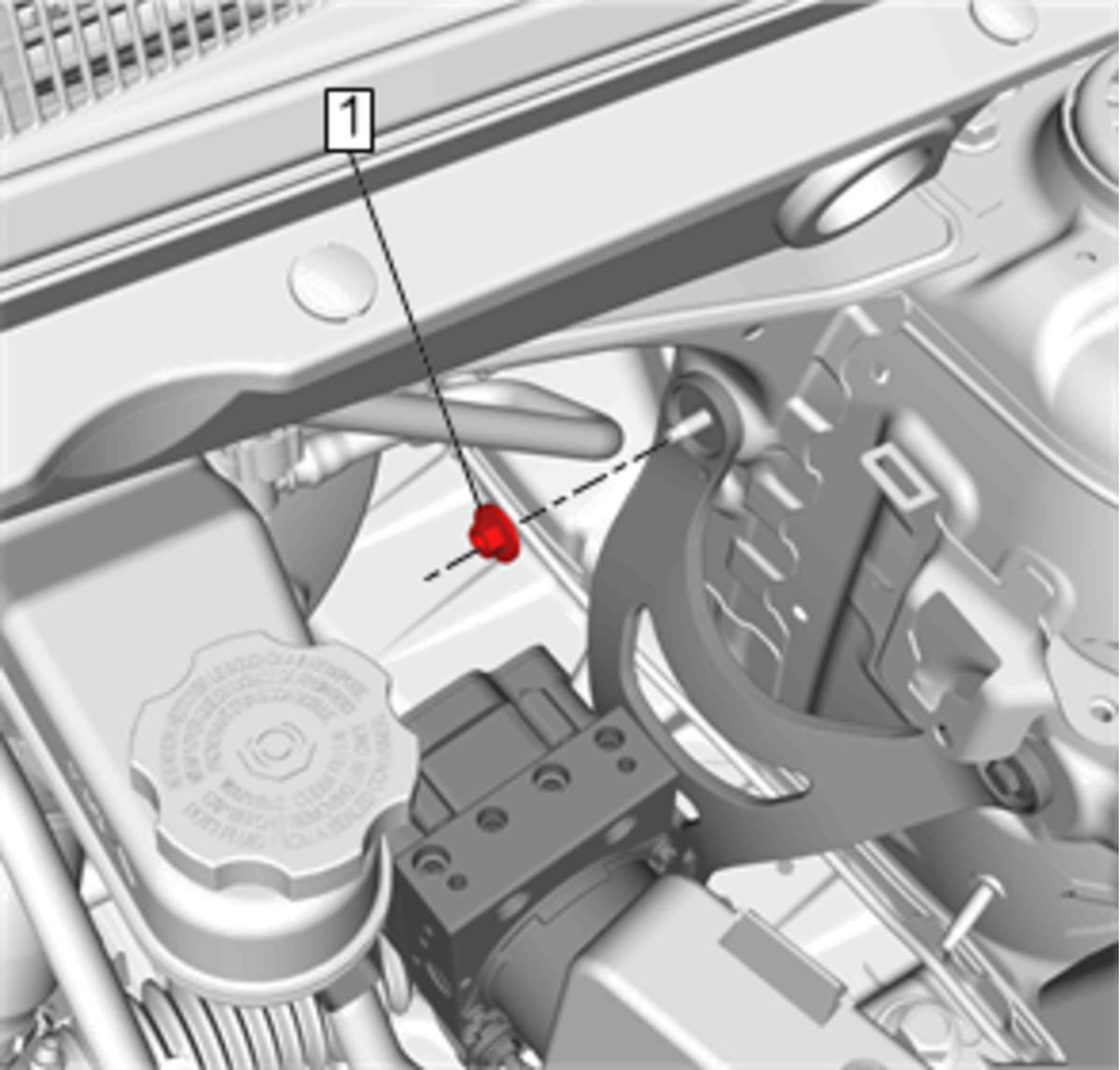

    3. Fig 3: Brake Pressure Modulator Valve Bracket Nut
    GM4213873Courtesy of GENERAL MOTORS COMPANY
  3. Brake Pressure Modulator Valve Bracket Nut 1 - Install and tighten 9 N.m (80 lb in)

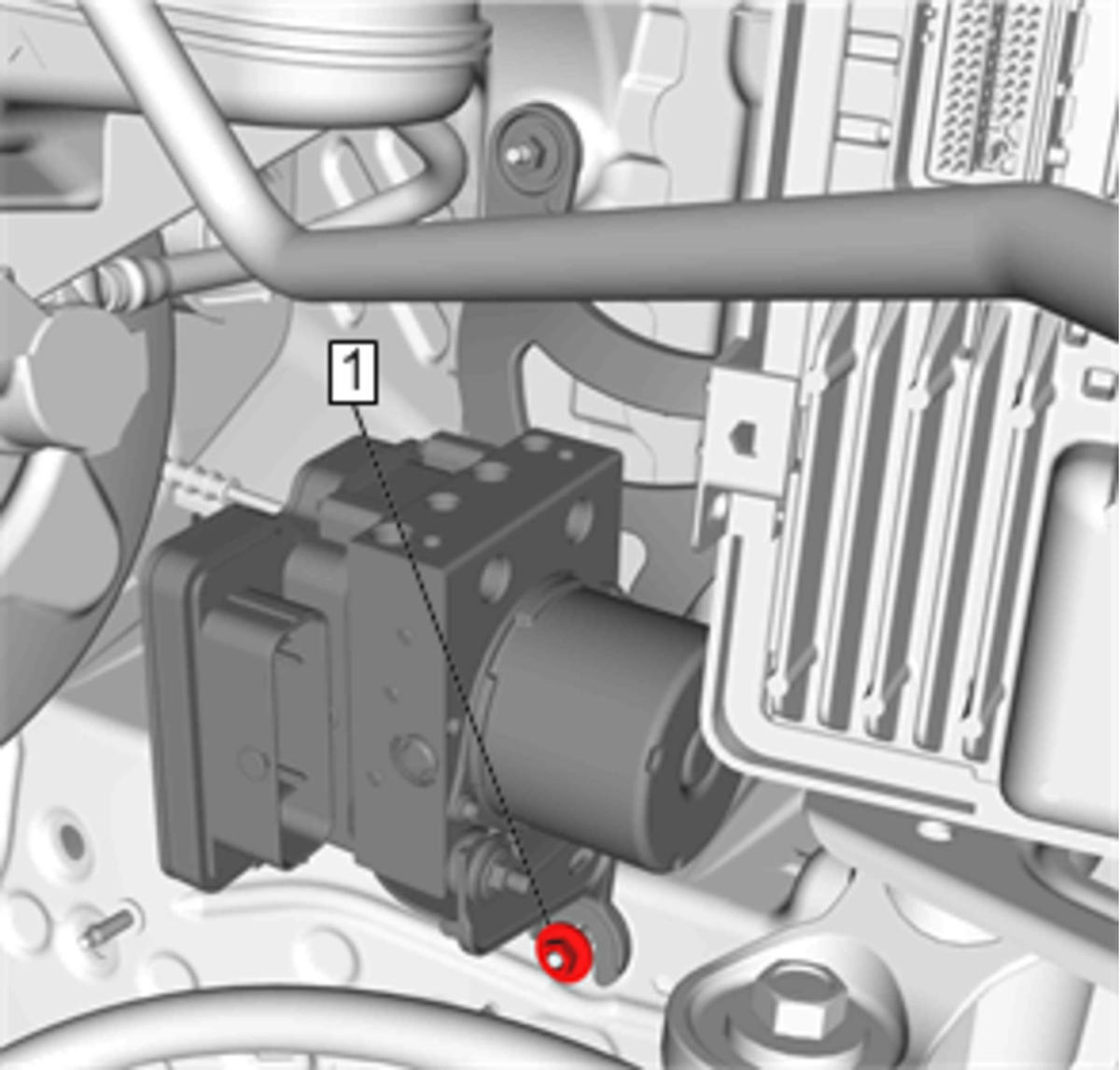

    4. Fig 4: Brake Pressure Modulator Valve Bracket Nut
    GM4213872Courtesy of GENERAL MOTORS COMPANY
  4. Brake Pressure Modulator Valve Bracket Nut 1 - Install and tighten 9 N.m (80 lb in)

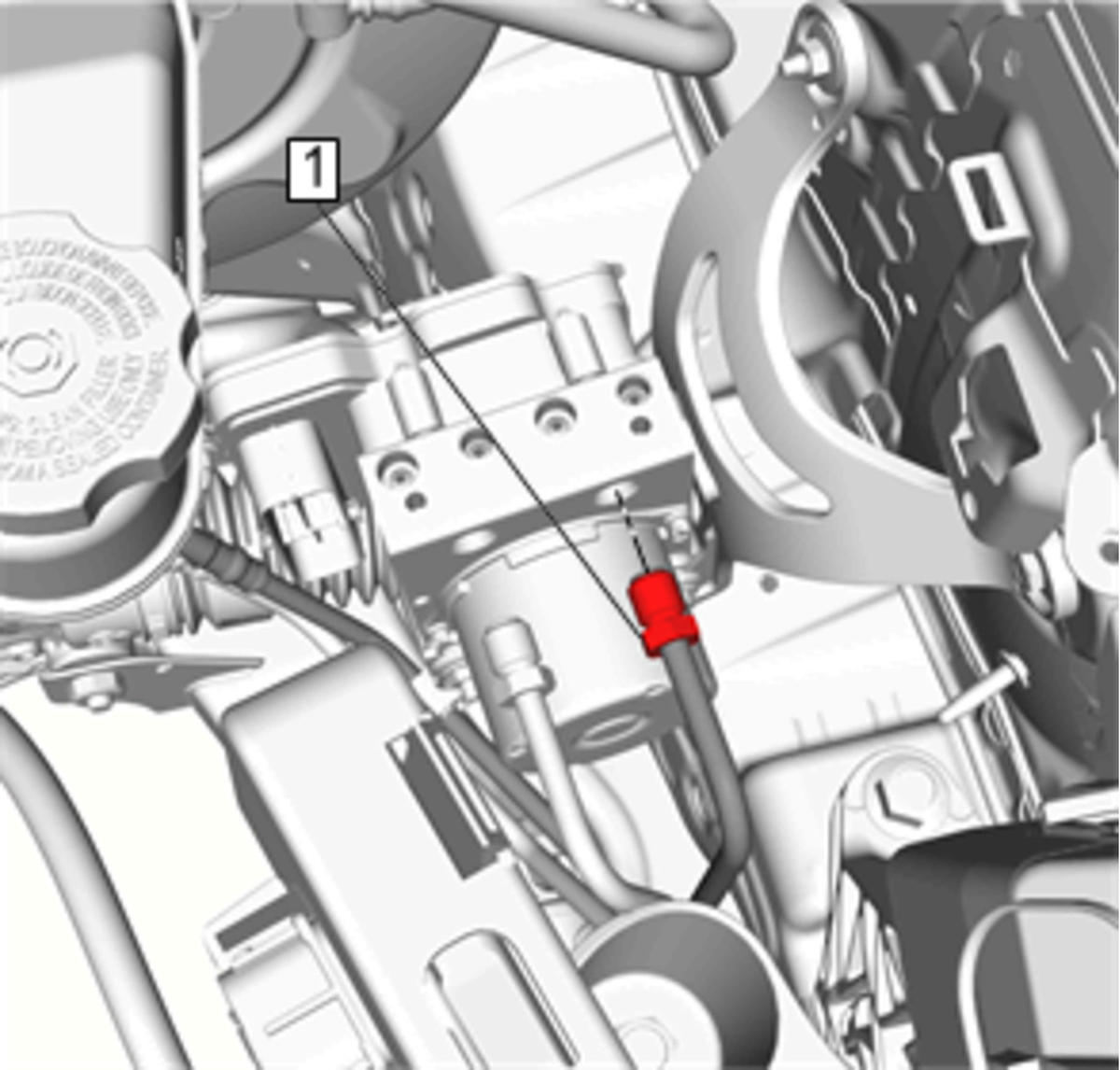

    5. Fig 5: Brake Pressure Modulator Valve Primary Pipe Fitting
    GM4213869Courtesy of GENERAL MOTORS COMPANY
  5. Brake Pressure Modulator Valve Primary Pipe Fitting 1 - Install and tighten 32 N.m (24 lb ft)

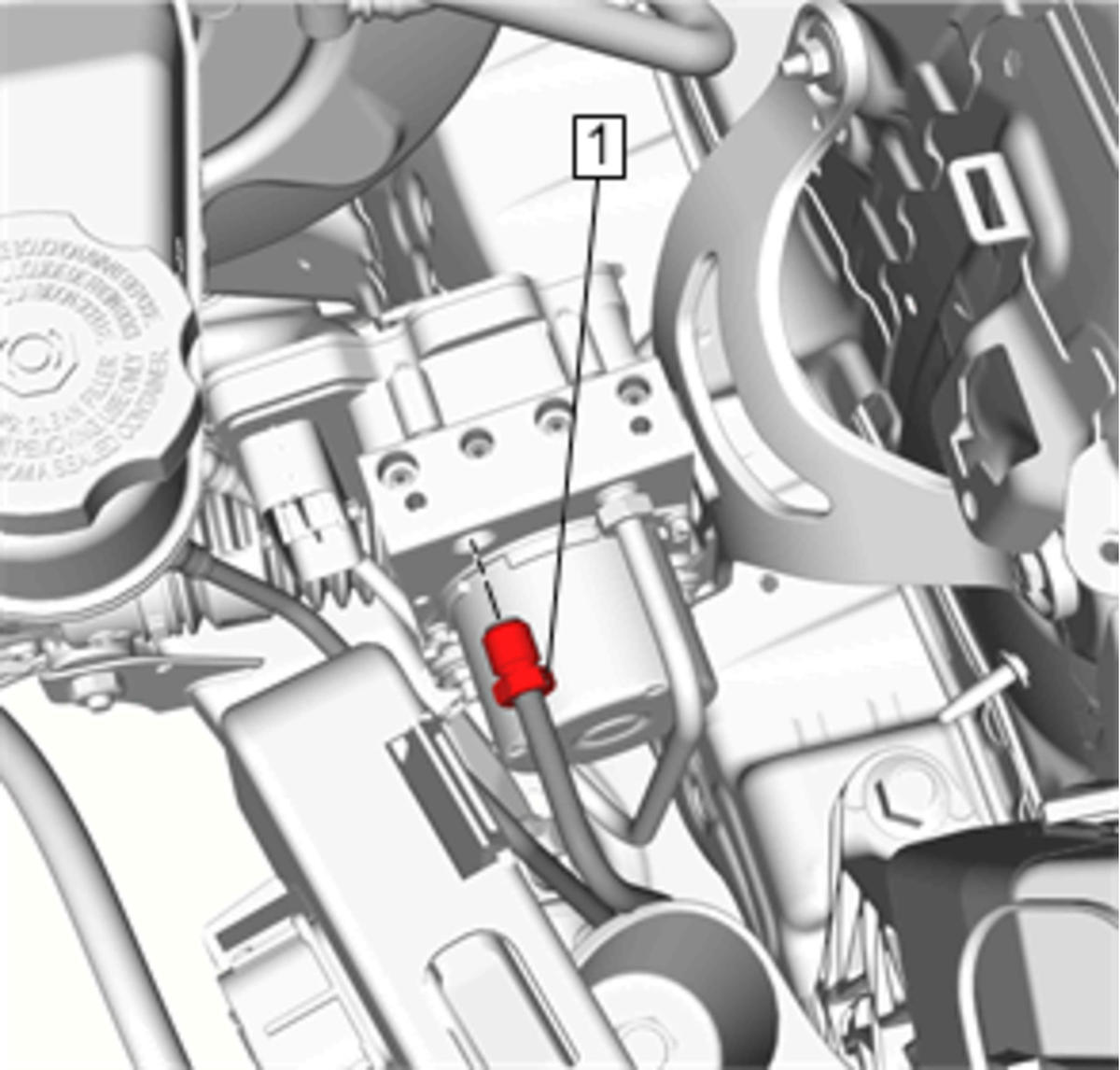

    6. Fig 6: Brake Pressure Modulator Valve Secondary Pipe Fitting
    GM4213865Courtesy of GENERAL MOTORS COMPANY
  6. Brake Pressure Modulator Valve Secondary Pipe Fitting 1 - Install and tighten 32 N.m (24 lb ft)

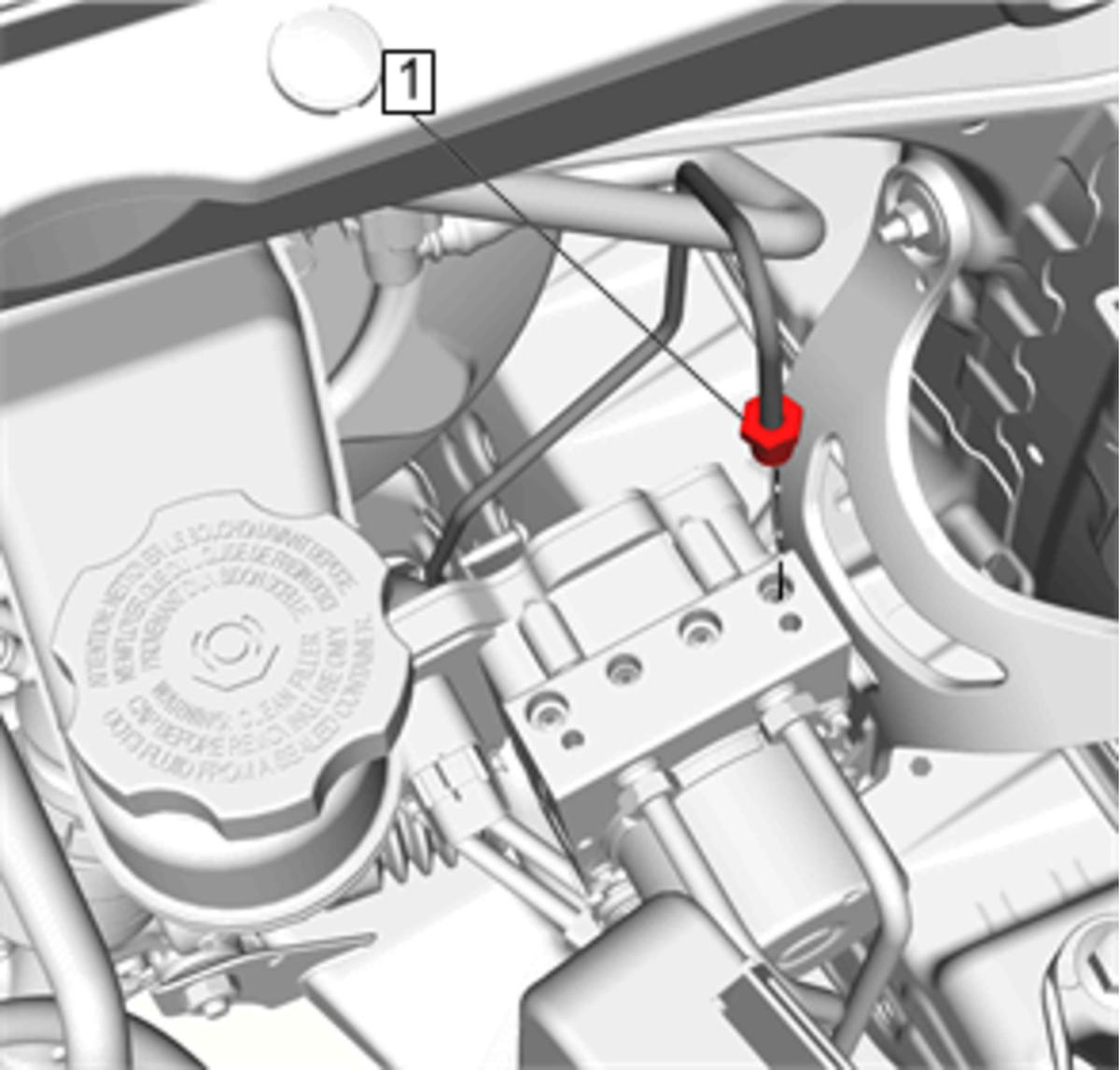

    7. Fig 7: Left Front Brake Pipe Fitting
    GM4213864Courtesy of GENERAL MOTORS COMPANY
  7. Left Front Brake Pipe Fitting 1 - Install and tighten 18 N.m (13 lb ft)

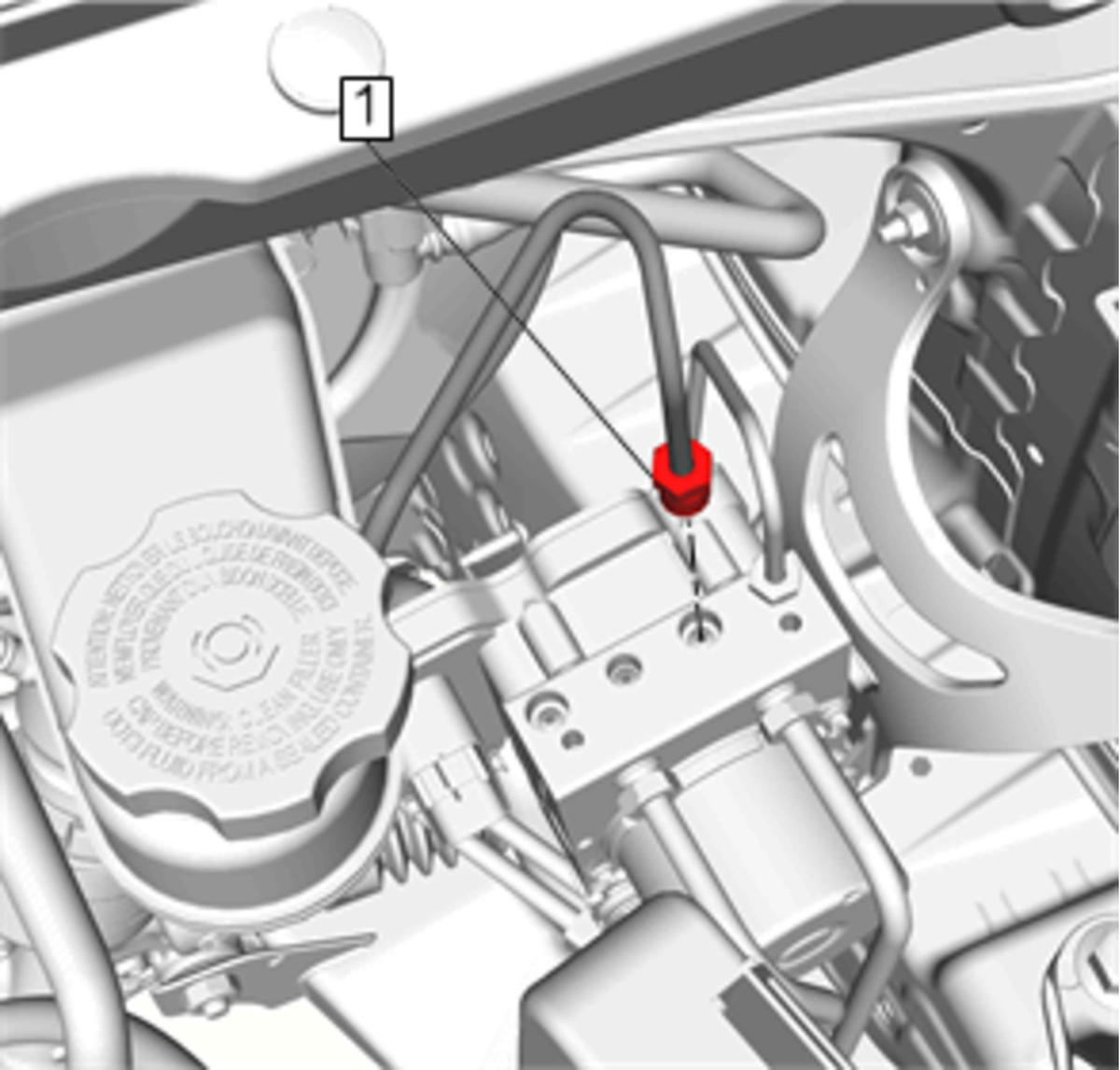

    8. Fig 8: Right Rear Brake Pipe Fitting
    GM4213863Courtesy of GENERAL MOTORS COMPANY
  8. Right Rear Brake Pipe Fitting 1 - Install and tighten 18 N.m (13 lb ft)

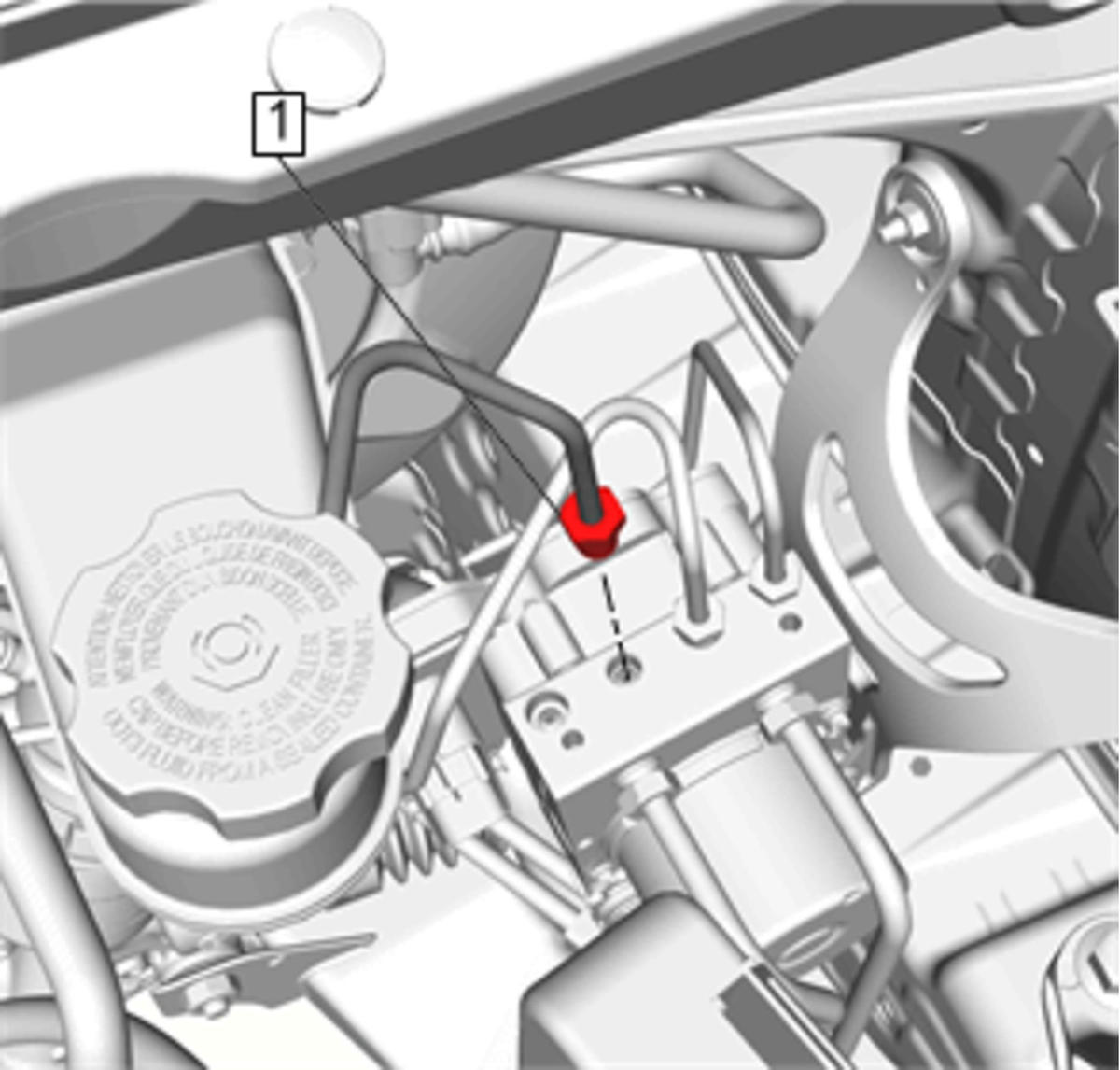

    9. Fig 9: Left Rear Brake Pipe Fitting
    GM4213861Courtesy of GENERAL MOTORS COMPANY
  9. Left Rear Brake Pipe Fitting 1 - Install and tighten 18 N.m (13 lb ft)

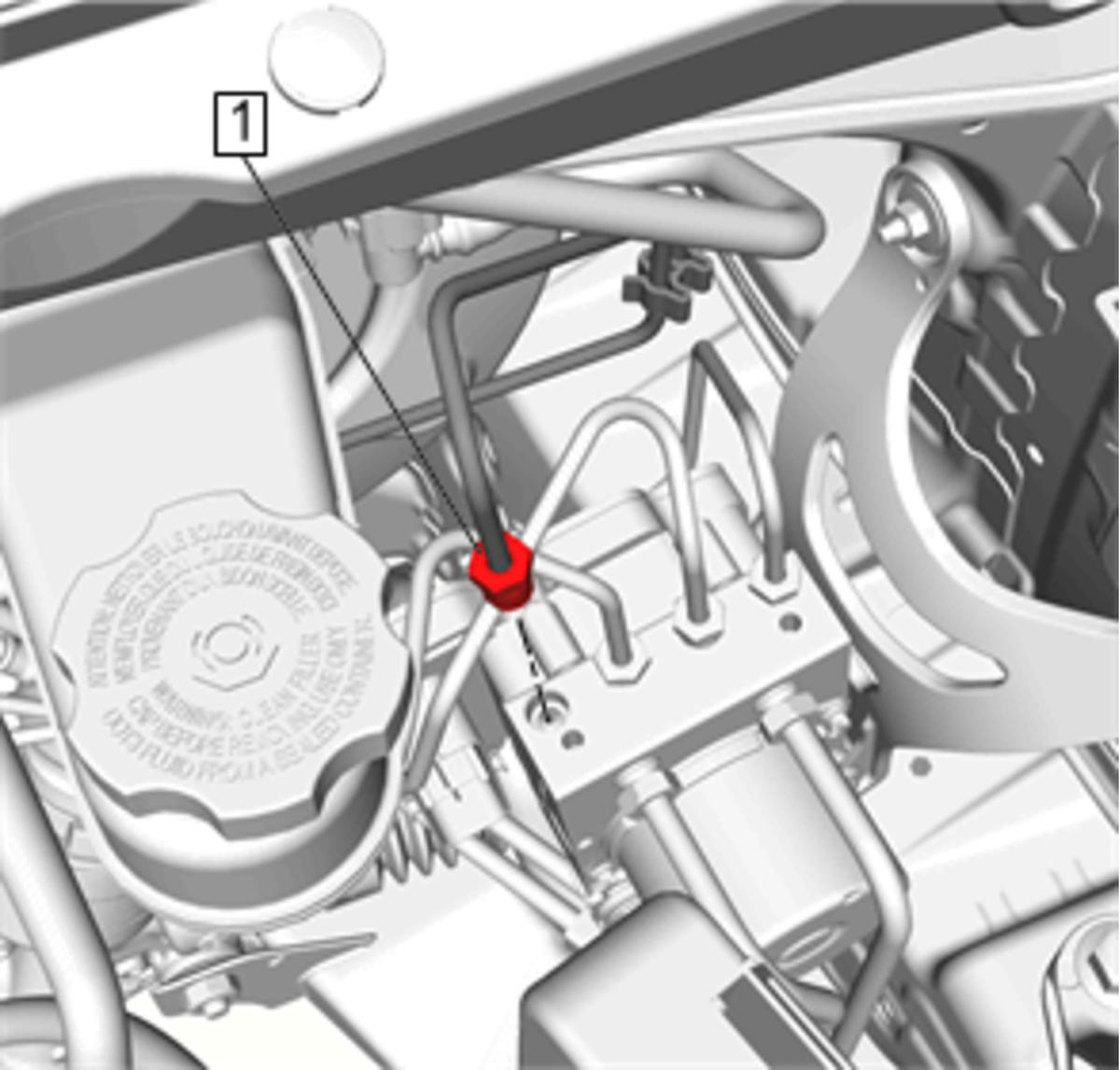

    10. Fig 10: Right Front Brake Pipe Fitting
    GM4213860Courtesy of GENERAL MOTORS COMPANY
  10. Right Front Brake Pipe Fitting 1 - Install and tighten 18 N.m (13 lb ft)

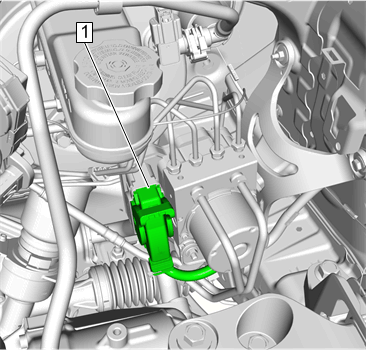

    11. Fig 11: EBCM Electrical Connector
    GM4775942Courtesy of GENERAL MOTORS COMPANY
  11. EBCM Electrical Connector 1 - Connect
  12. Bleed the brake system. Antilock Brake System Automated Bleed
  13. Reposition and install the radiator surge tank. Radiator Surge Tank Replacement (LGX FWD)Radiator Surge Tank Replacement (LGX AWD)
    14. Fig 12: Air Cleaner Outlet Duct
    GM4455156Courtesy of GENERAL MOTORS COMPANY
  14. Air Cleaner Outlet Duct 1 - Install - Air Cleaner Outlet Duct Replacement
  15. Program the EBCM. Electronic Brake Control Module Programming and Setup
  16. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
