Installation Procedure

    Fig 1: Brake Pressure Modulator Valve Bracket
    GM4299248Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used on the insulator as a lubricant to ease installation.

  1. Brake Pressure Modulator Valve Bracket 1 - Install

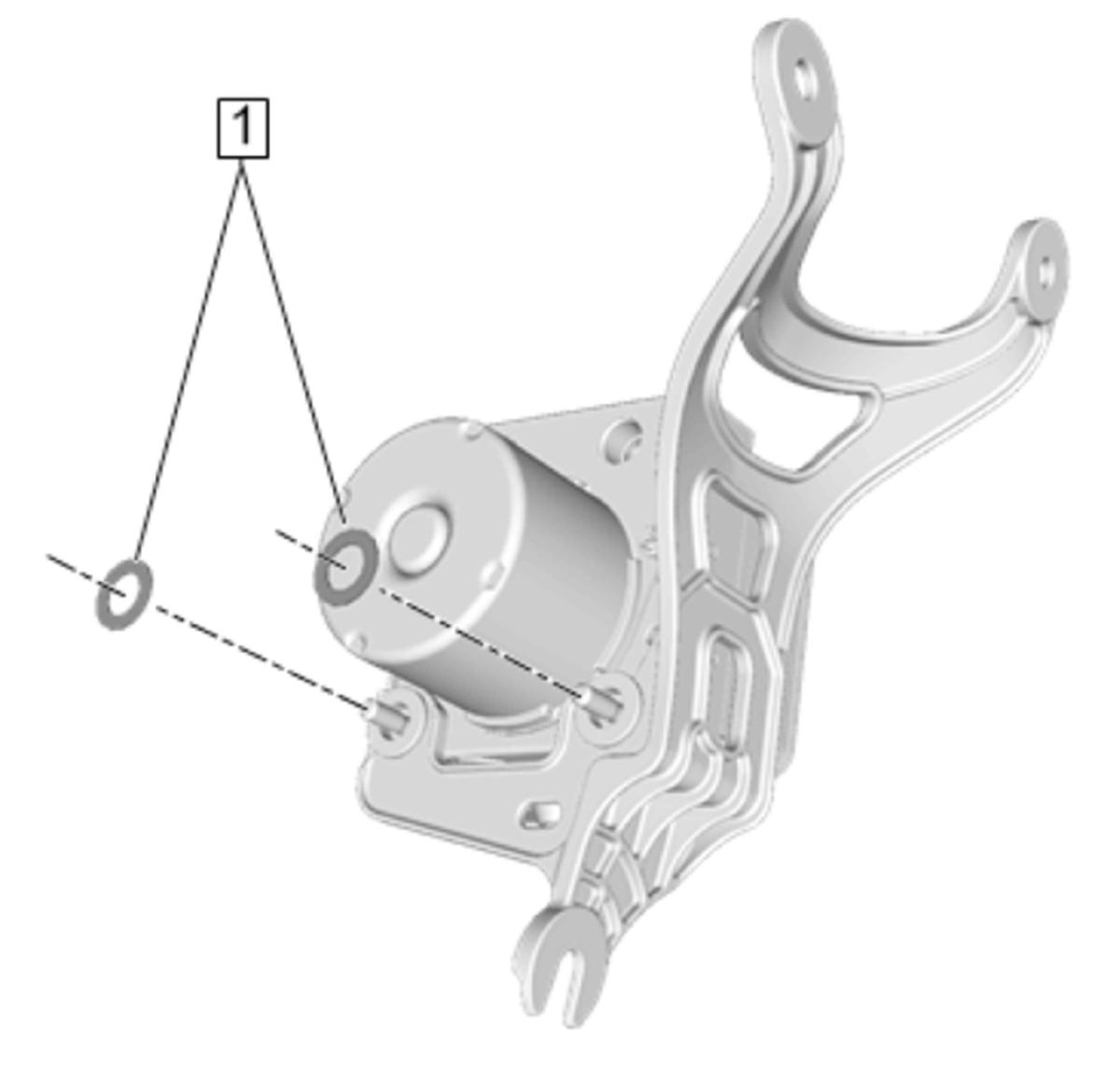

    2. Fig 2: Brake Pressure Modulator Valve Washer
    GM4299247Courtesy of GENERAL MOTORS COMPANY
  2. Brake Pressure Modulator ValveWasher 1 - Install

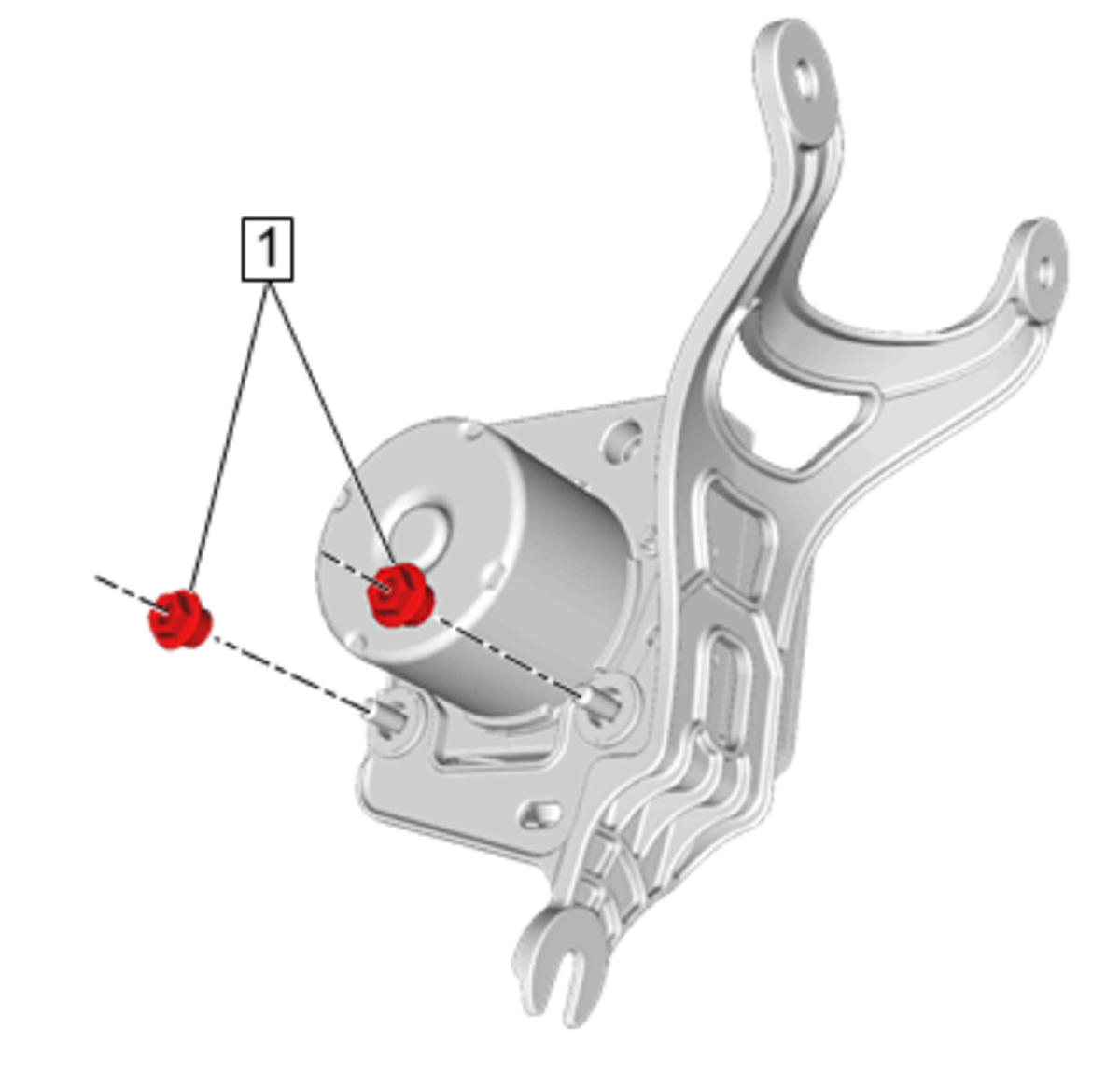

    3. Fig 3: Brake Pressure Modulator Valve Nut
    GM4299246Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  3. Brake Pressure Modulator ValveNut 1 - Install and tighten 9 N.m (80 lb in)
  4. Electronic Traction Control Brake Pressure Modulator Valve - Install - Electronic Traction Control Brake Pressure Modulator Valve Replacement
