Rear Side Door Window Switch Replacement

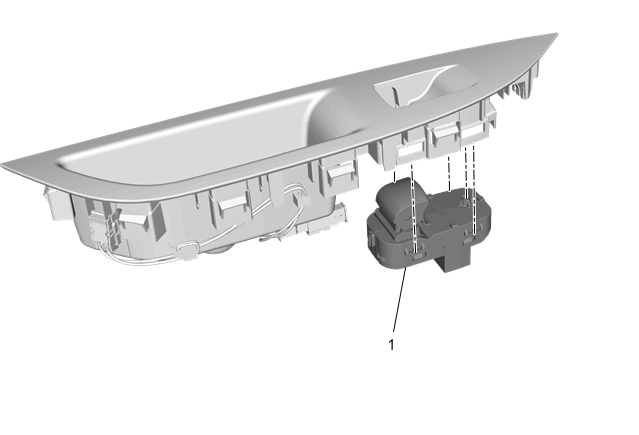

Fig 1: Rear Side Door Window Switch
GM4321043Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Accessory Switch Mount Plate Replacement
1 Rear Side Door Window Switch
Procedure
Release the tabs and remove the switch.
