Front Side Door Window Channel Retainer Replacement

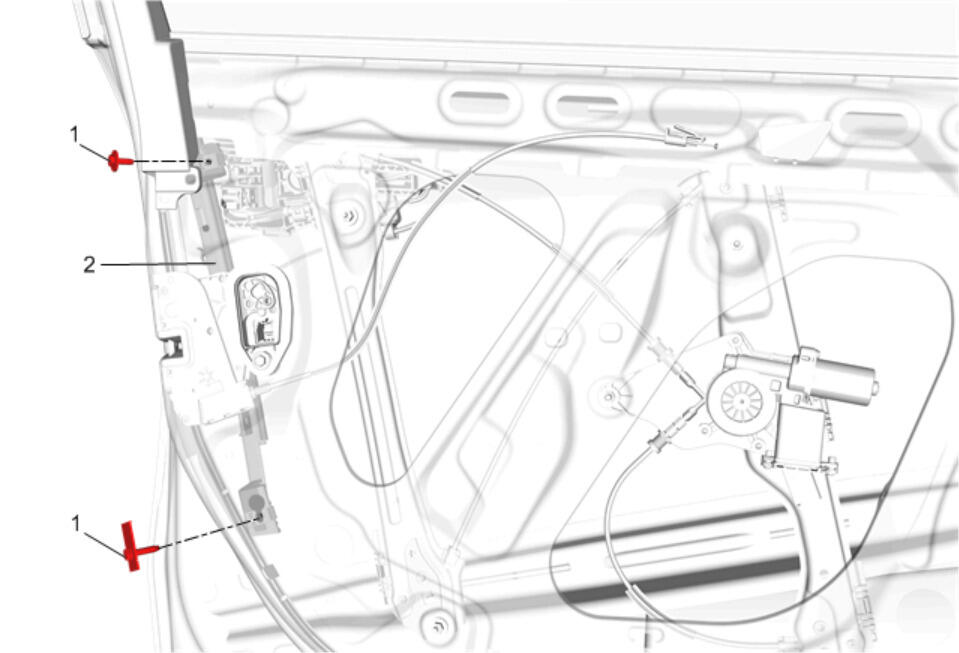

Fig 1: Front Side Door Window Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Trim Replacement Remove the front side door water deflector.
1	Front Side Door Window Channel Retainer Bolt Procedure Place the front side door window in the full up position. CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Rear Channel Retainer

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Front Side Door Trim Replacement
Remove the front side door water deflector.

Front Side Door Window Channel Retainer Bolt
Procedure
Place the front side door window in the full up position.

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Rear Channel Retainer
