Front Seat Adjuster Memory Module Bracket Replacement

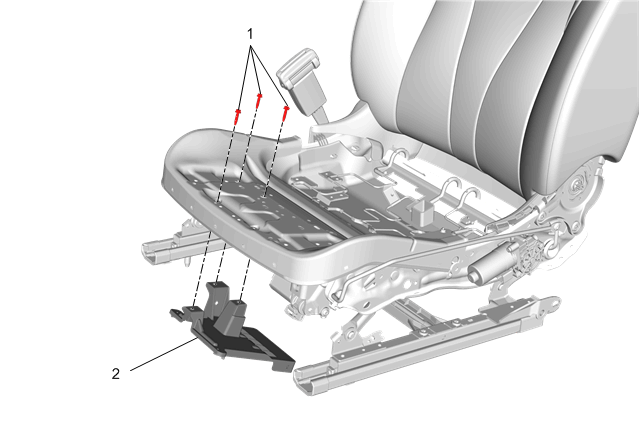

Fig 1: Front Seat Adjuster Memory Module Bracket
GM4323230Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Front Seat Cushion Cover and Pad Replacement
  2. Driver Seat Adjuster Memory Module Replacement
1 Front Seat Adjuster Memory Module Bracket Bolt
CAUTION:

Fastener Caution
2 Front Seat Adjuster Memory Module Bracket
