Outside Rearview Mirror Replacement

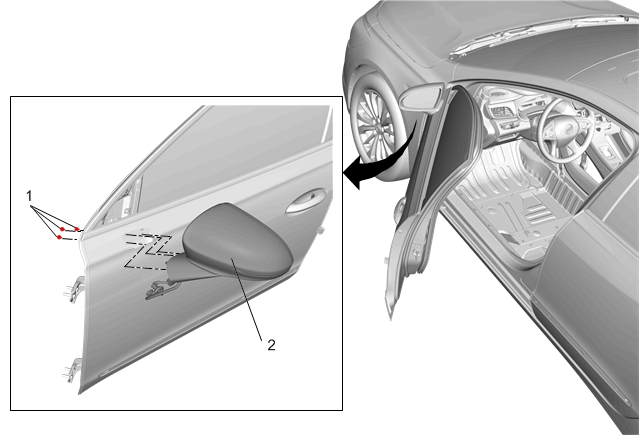

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Glass and Sheet Metal Handling Warning CAUTION: Paint Damage Caution Preliminary Procedure Front Side Door Window Garnish Molding Replacement
1	Outside Rearview Mirror Bolt CAUTION: Fastener Caution Tighten 9 N.m (80 lb in) Procedure Remove the tape from the front side door inner panel to access the mirror fasteners.
2	Outside Rearview Mirror Procedure Disconnect the electrical connector. Inspect the outside rearview mirror for proper operation.

Callout

Component Name

WARNING:

CAUTION:

Preliminary Procedure

Outside Rearview Mirror Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Procedure

Remove the tape from the front side door inner panel to access the mirror fasteners.

Outside Rearview Mirror

Procedure
