Radio Control Assembly Replacement

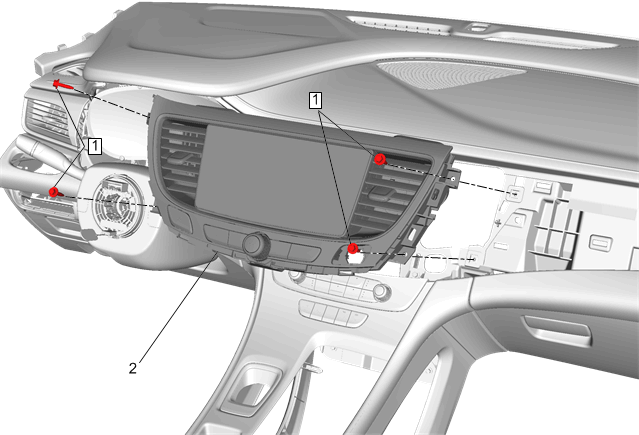

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Cluster Trim Plate Replacement
1	Radio Control Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup information.

Callout

Component Name

Radio Control Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure
