Radio Replacement

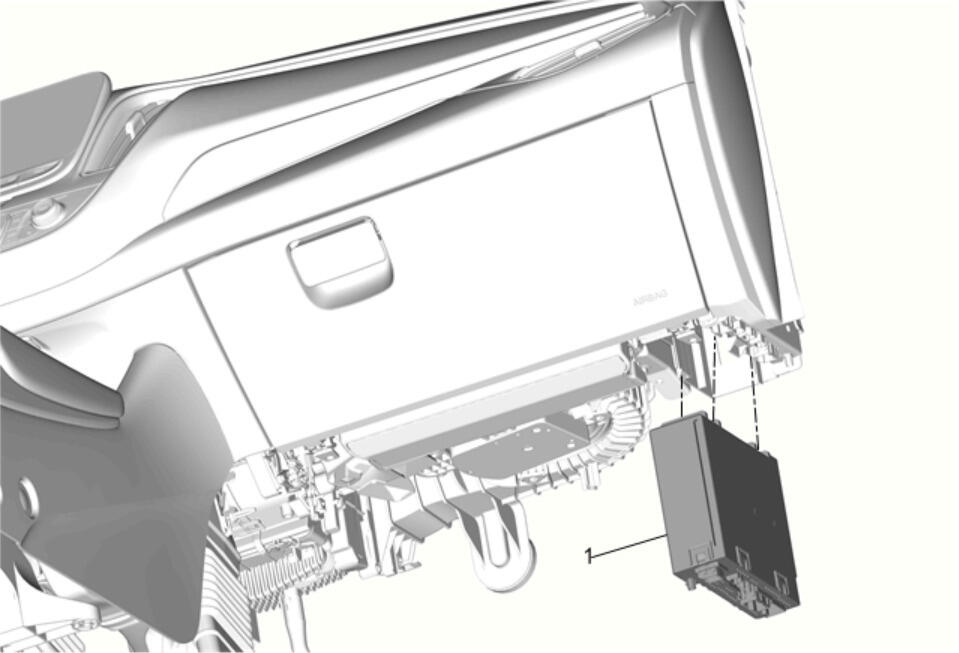

Fig 1: Radio
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Radio Bracket Replacement
1
Radio
Procedure
Push tab to release the module from the bracket and slide downward.
Refer to
Control Module References
for programming and setup information.
