Advanced Parking Assist Alarm Sensor Replacement (Front)

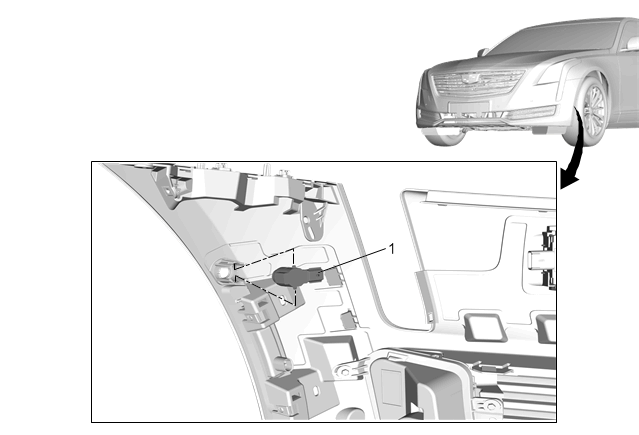

Fig 1: Advanced Parking Assist Alarm Sensor (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Advance Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Advance Parking Assist Alarm Sensor

Procedure

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
