Automatic Transmission Components (1 of 2) (MKE)

Items
1. K173 Transmission Range Control Module K173 Transmission Range Control Module (LTG)K173 Transmission Range Control Module (LKN)K173 Transmission Range Control Module (LFV)K173 Transmission Range Control Module (LGX)
2. T6 Power Inverter Module T6 Power Inverter Module X1 (CZ2)T6 Power Inverter Module X1 (EF7/Z49)T6 Power Inverter Module X1 (HP4)T6 Power Inverter Module X2 (HP4)T6 Power Inverter Module X5 (HP4)T6 Power Inverter Module X4 (HP4)

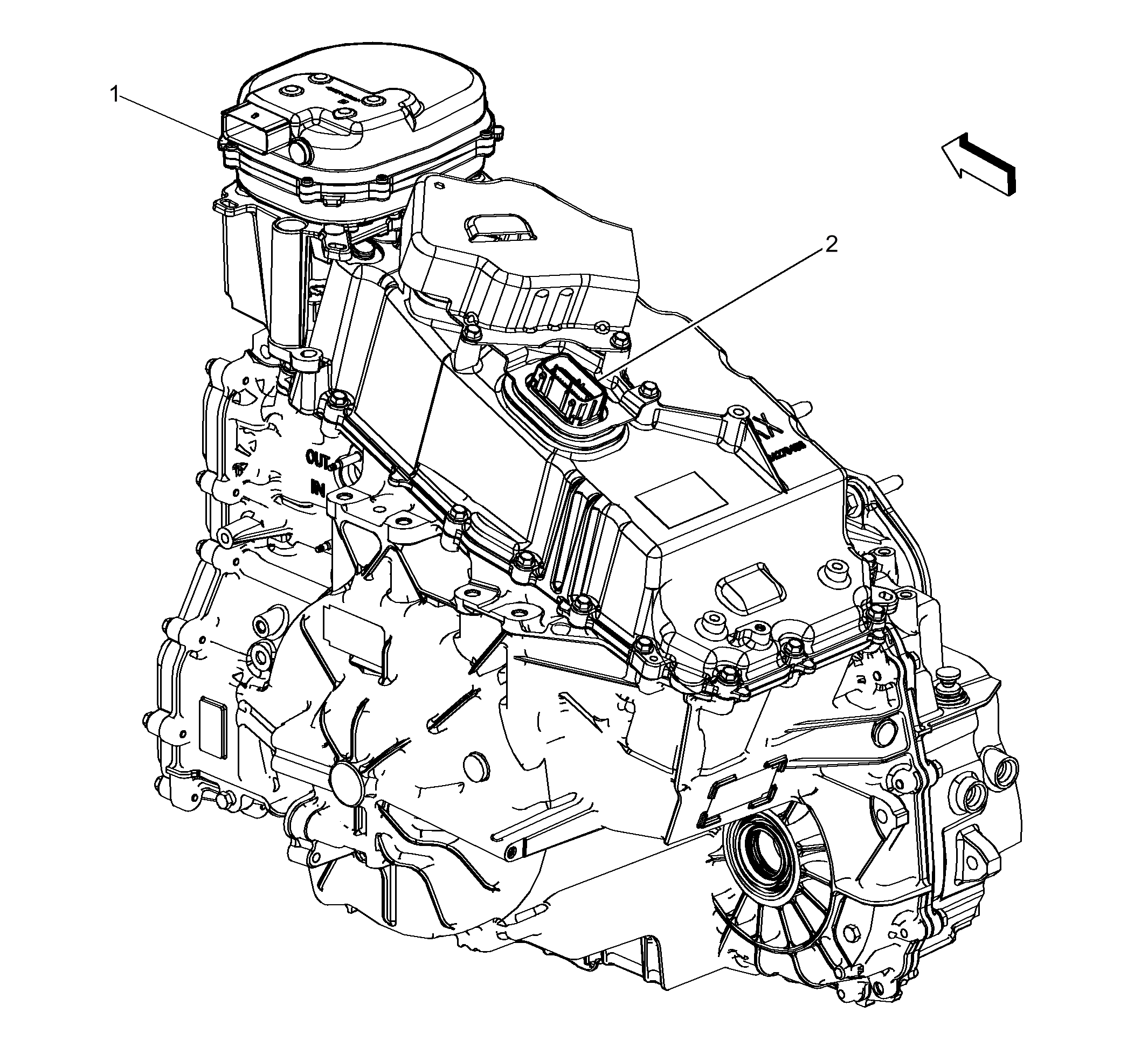

Fig 1: Automatic Transmission Components (1 of 2) (MKE)

Courtesy of GENERAL MOTORS COMPANY
