Left Front of the Engine Compartment Components (LKN)

Left Front of the Engine Compartment Components (LKN)

Items
1. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3 (LKN)X50A Fuse Block - Underhood X4 (LKN)X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 (LFV)X50A Fuse Block - Underhood X6 (LGX)X50A Fuse Block - Underhood X8X50A Fuse Block - Underhood X9 (LKN)
2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3 (LKN)X50A Fuse Block - Underhood X4 (LKN)X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 (LFV)X50A Fuse Block - Underhood X6 (LGX)X50A Fuse Block - Underhood X8X50A Fuse Block - Underhood X9 (LKN)
3. K20 Engine Control Module K20 Engine Control Module X1 (LKN)K20 Engine Control Module X2 (LKN)K20 Engine Control Module X3 (LKN)

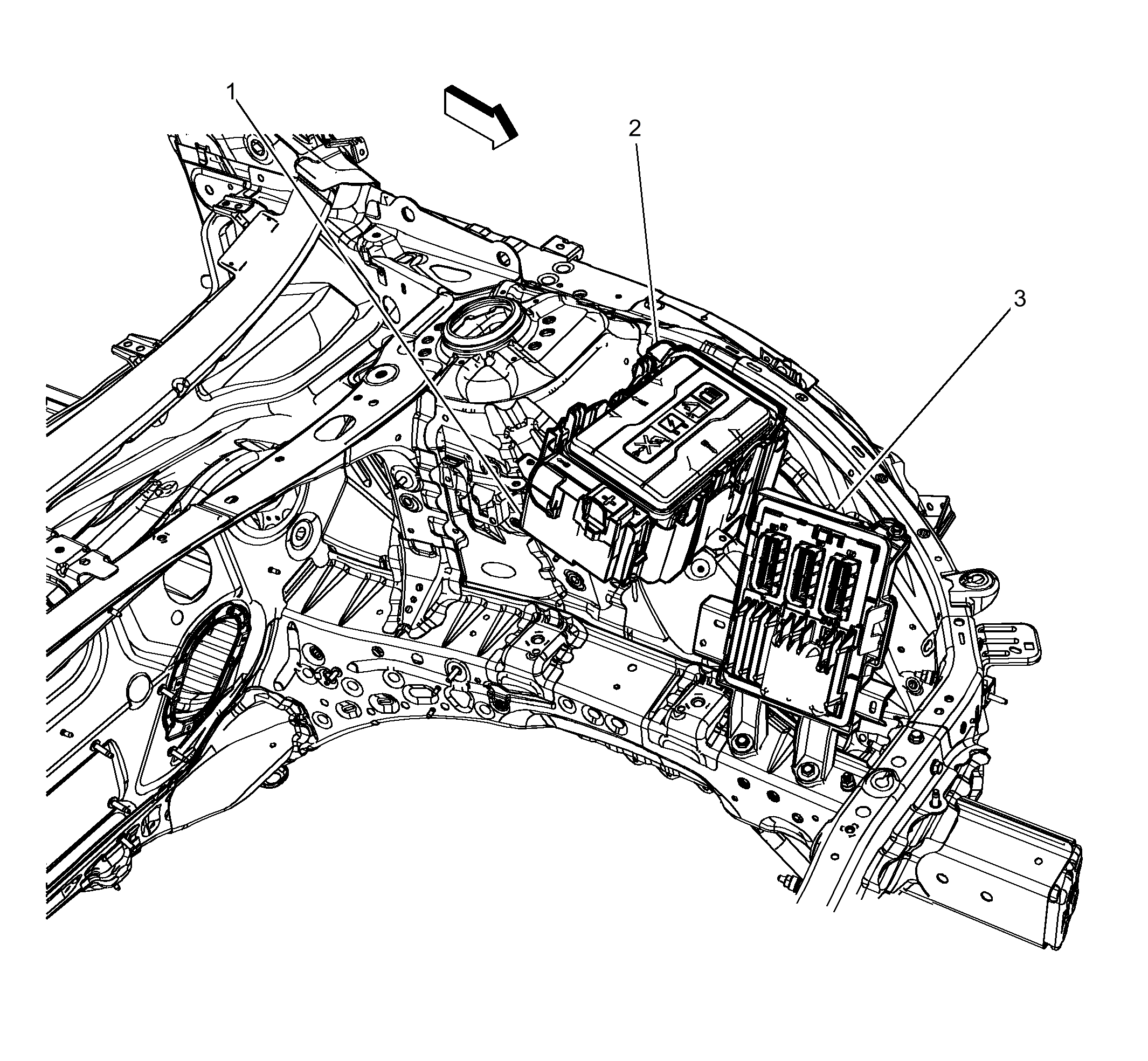

Fig 1: Left Front of the Engine Compartment Components (LKN)
GM4318992Courtesy of GENERAL MOTORS COMPANY
