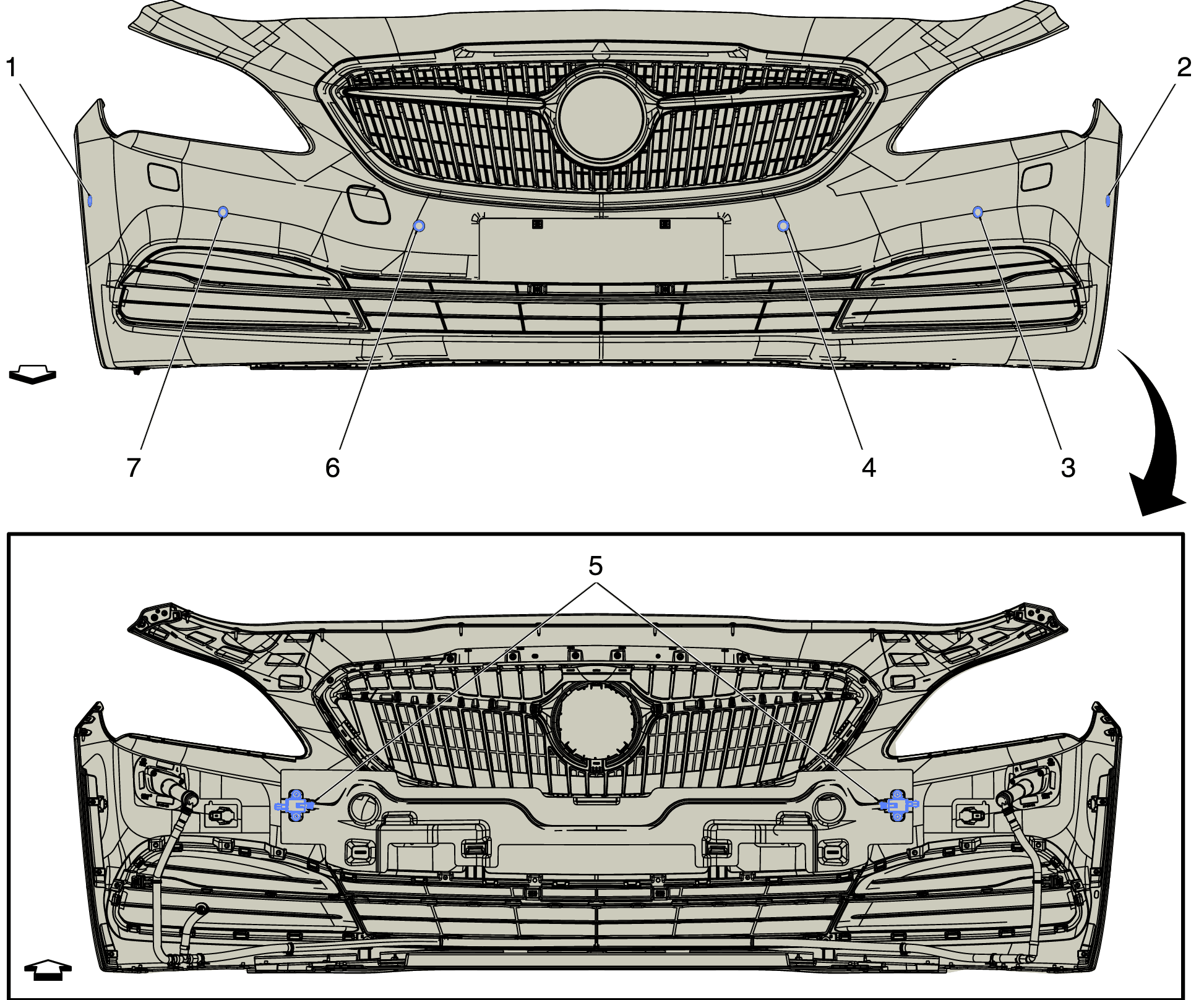

Front of the Vehicle Components (B3T)
Front of the Vehicle Components (B3T)
| Items |
|---|
| 1. B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front (UQF) |
| 2. B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front (UFQ) |
| 3. B306A Parking Assist Sensor - Front Left Outer (UFQ) B306A Parking Assist Sensor - Front Left Outer (UFQ) |
| 4. B306B Parking Assist Sensor - Front Left Middle (UFQ) B306B Parking Assist Sensor - Front Left Middle (UFQ) |
| 5. B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front |
| 6. B306C Parking Assist Sensor - Front Right Middle (UFQ) B306C Parking Assist Sensor - Front Right Middle (UFQ) |
| 7. B306D Parking Assist Sensor - Front Right Outer (UFQ) |
