Body Control Module Bracket Replacement

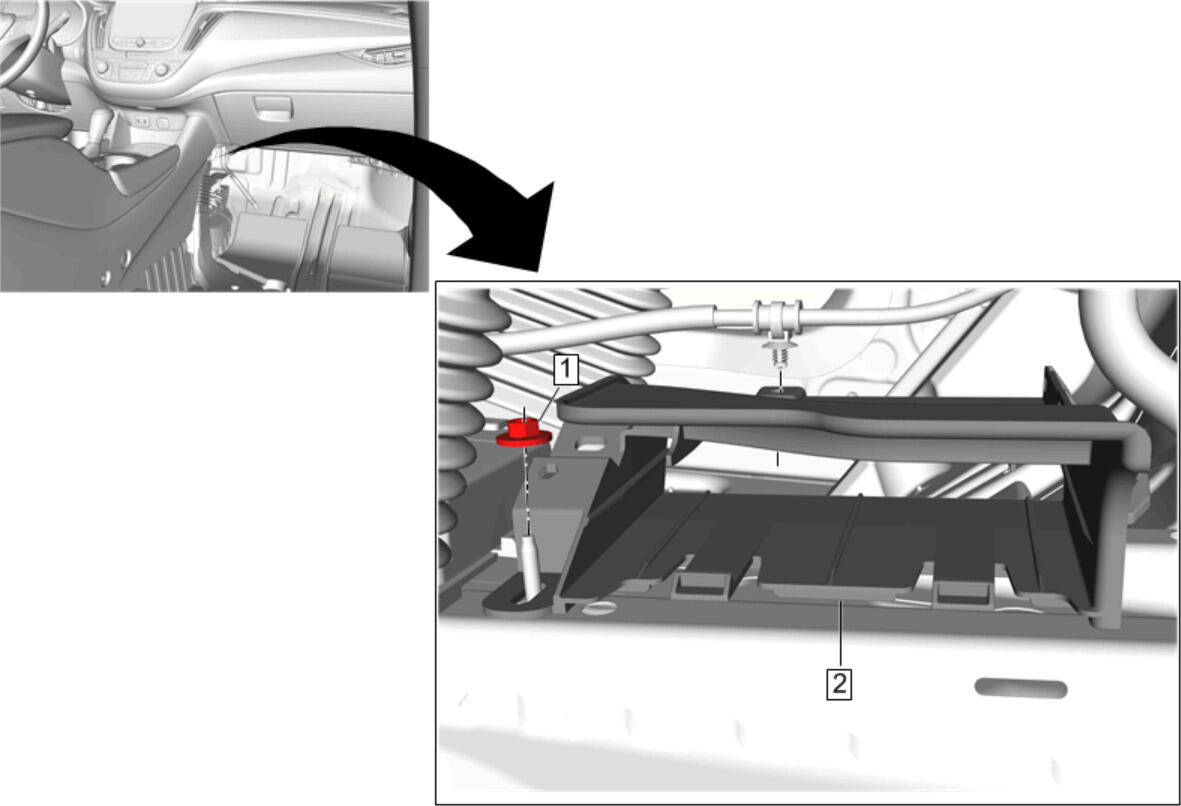

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Low Frequency Instrument Panel Antenna Replacement Body Control Module Replacement
1	Body Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Body Control Module Bracket

Callout

Component Name

Preliminary Procedures

Body Control Module Bracket Nut

CAUTION:

Tighten
6 N.m (53 lb in)

Body Control Module Bracket
