Fuel Tank Heat Shield Replacement

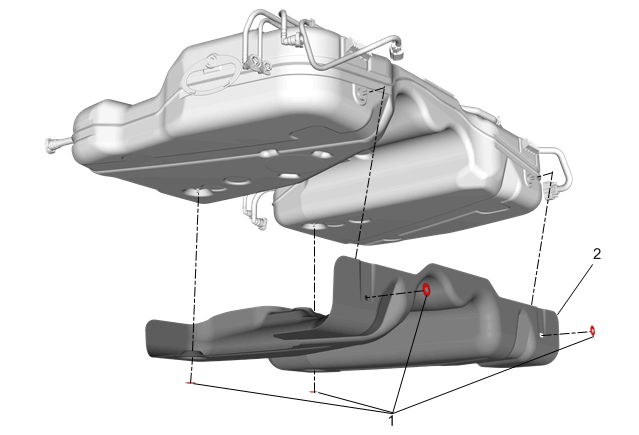

Fig 1: Fuel Tank Heat Shield
GM3876409Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Heat Shield Retainers (Qty: 4)
CAUTION:

Refer to Fastener Caution
2 Fuel Tank Heat Shield
