Front Side Door Window Channel Retainer Replacement

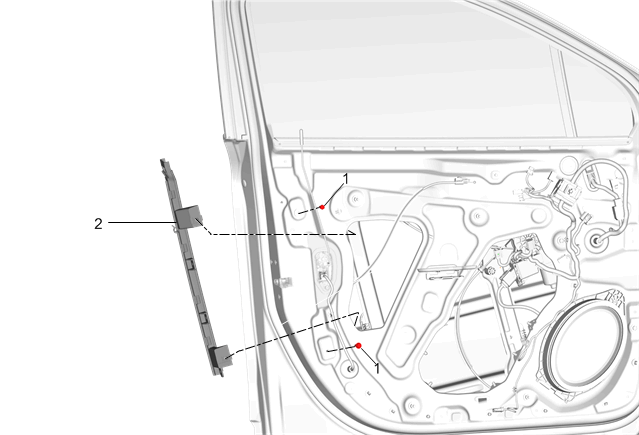

Fig 1: Front Side Door Window Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Armrest Bracket Replacement
1	Front Side Door Window Channel Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Side Door Window Channel Retainer
