360 Degree Vision - Side Vision Cameras (UVH)

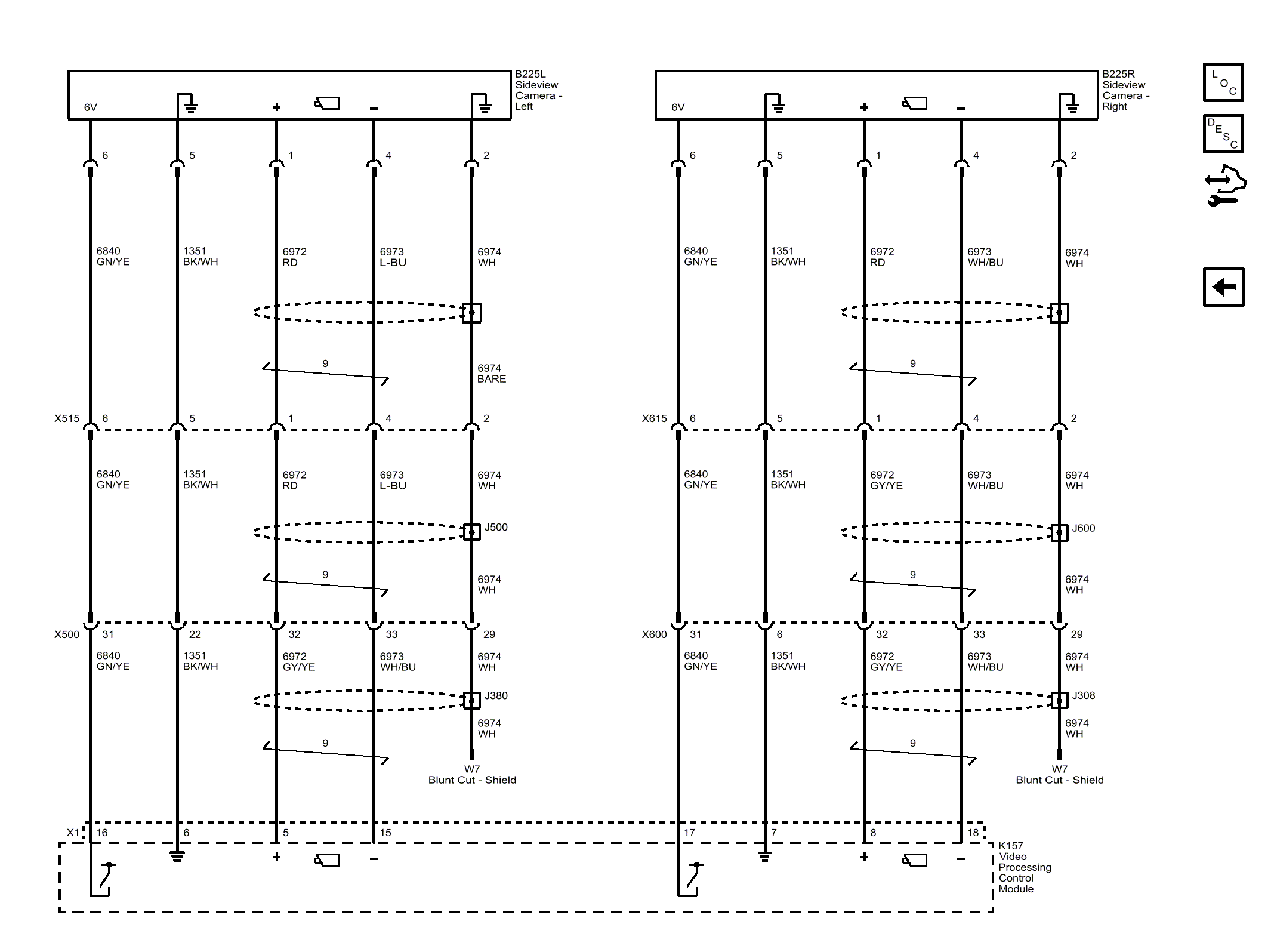

Fig 1: 360 Degree Vision - Side Vision Cameras (UVH)
GM4492994Courtesy of GENERAL MOTORS COMPANY
