Seat Belt System Description and Operation: Notes

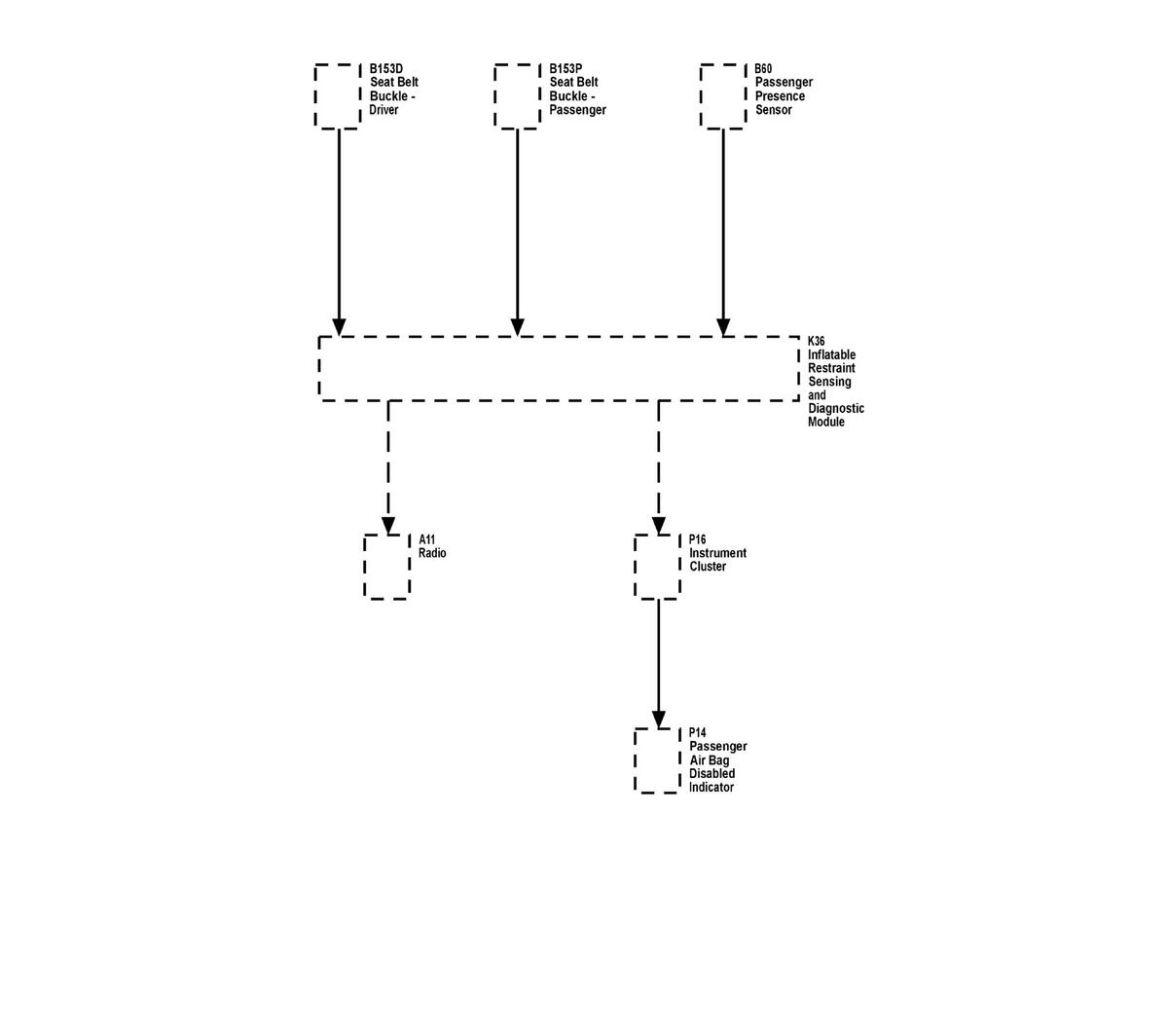

Fig 1: Seat Belt with P14, P16 and B60 Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
B153D	B153D Seat Belt Buckle - Driver
B153P	B153P Seat Belt Buckle - Passenger
B60	B60 Passenger Presence Sensor
K36	K36 Inflatable Restraint Sensing and Diagnostic Module
A11	A11 Radio
P16	P16 Instrument Cluster
P14	P14 Passenger Air Bag Disabled Indicator
