Right Side of Passenger Compartment Components

Items
1: T19 Power Supply Transformer T19 Power Supply Transformer
2: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
3: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 (-CZ2)K36 Inflatable Restraint Sensing and Diagnostic Module X2
4: B61P Seat Belt Tension Sensor - Passenger B61P Seat Belt Tension Sensor - Passenger
5: F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
6: F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
7: F124 Seat Belt Load Limiter - Passenger F124 Seat Belt Load Limiter - Passenger
8: B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front (AUJ-CZ2)B63RF Side Impact Sensor - Right Front (-AUJ)
9: B176 Multi-axis Acceleration Sensor Module (KSG) B176 Multi-axis Acceleration Sensor Module (KSG)

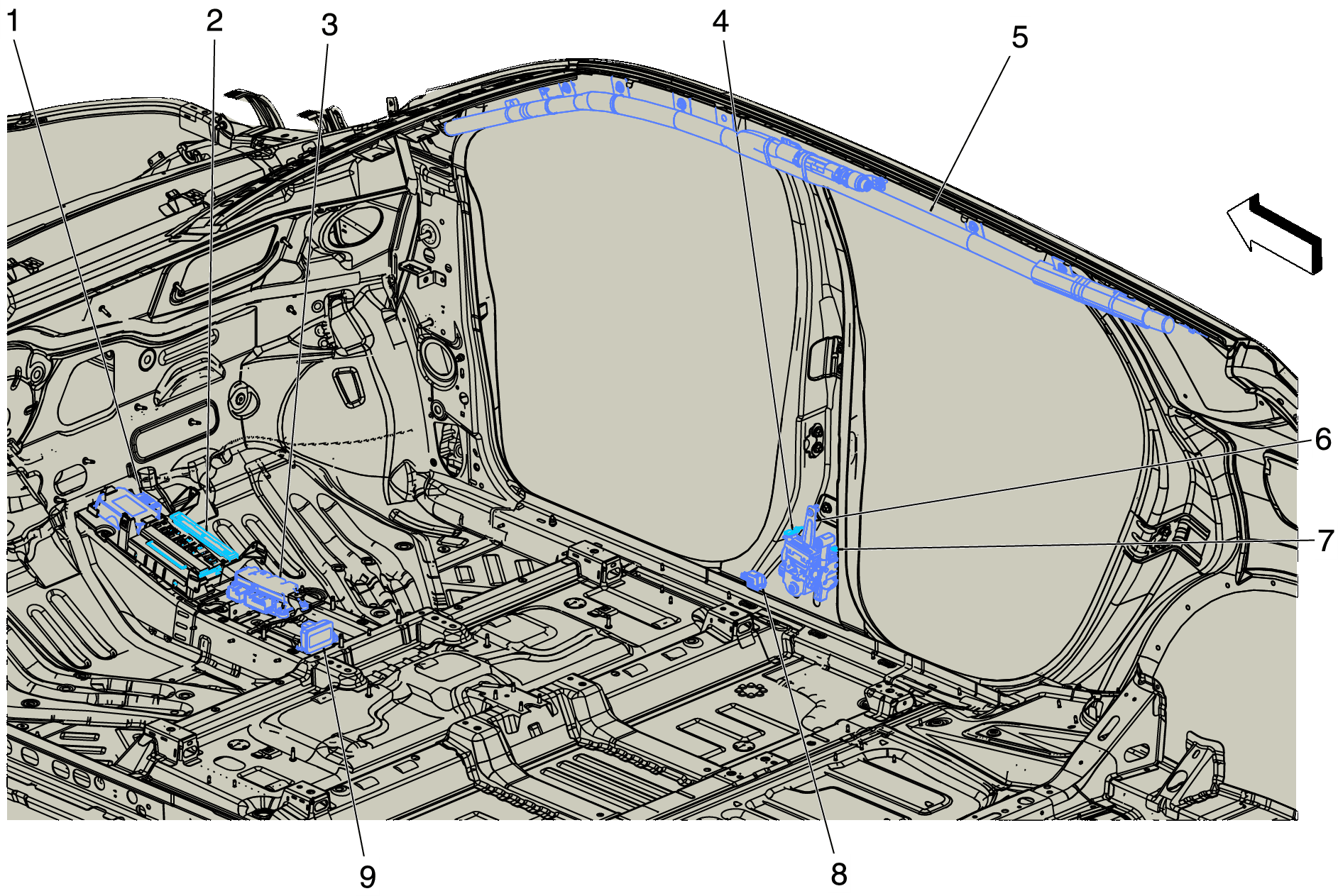

Fig 1: Right Side of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY
