Bottom of Passenger Seat Components

Bottom of Passenger Seat Components

Items
1: F113P Seat Belt Anchor Pretensioner - Passenger
2: M51P Seat Horizontal Motor - Passenger
3: M50P Seat Front Vertical Motor - Passenger
4: K29 Seat Heating Control Module
5: M73D Seat Blower Motor - Passenger Cushion (KU3)

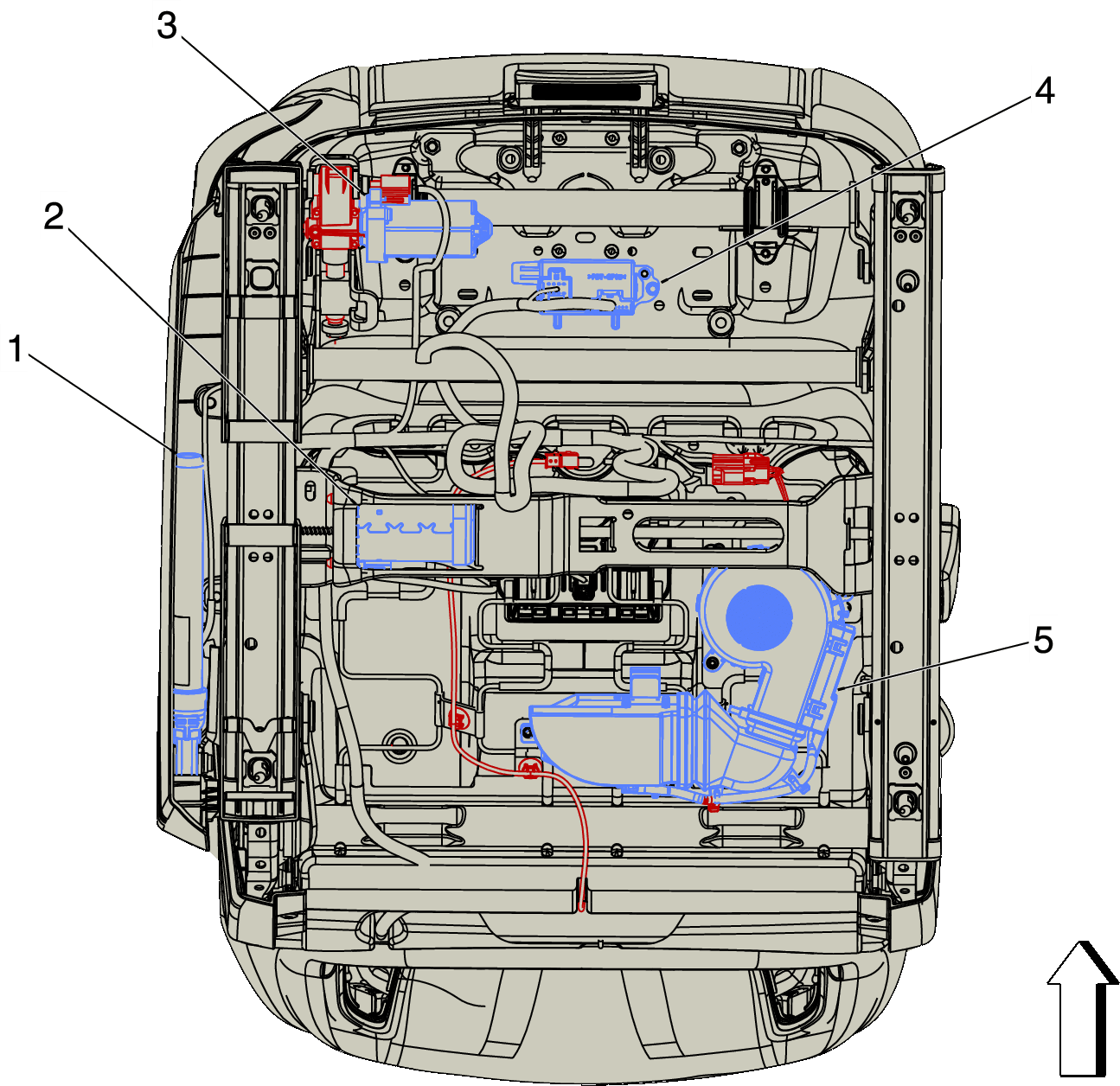

Fig 1: Bottom of Passenger Seat Components
GM4213226Courtesy of GENERAL MOTORS COMPANY
