Bottom of Driver Seat Components

Bottom of Driver Seat Components

Items
1: M51D Seat Horizontal Motor - Driver
2: M50D Seat Front Vertical Motor - Driver
3: F113D Seat Belt Anchor Pretensioner - Driver
4: M73C Seat Blower Motor - Driver Cushion (KU1)

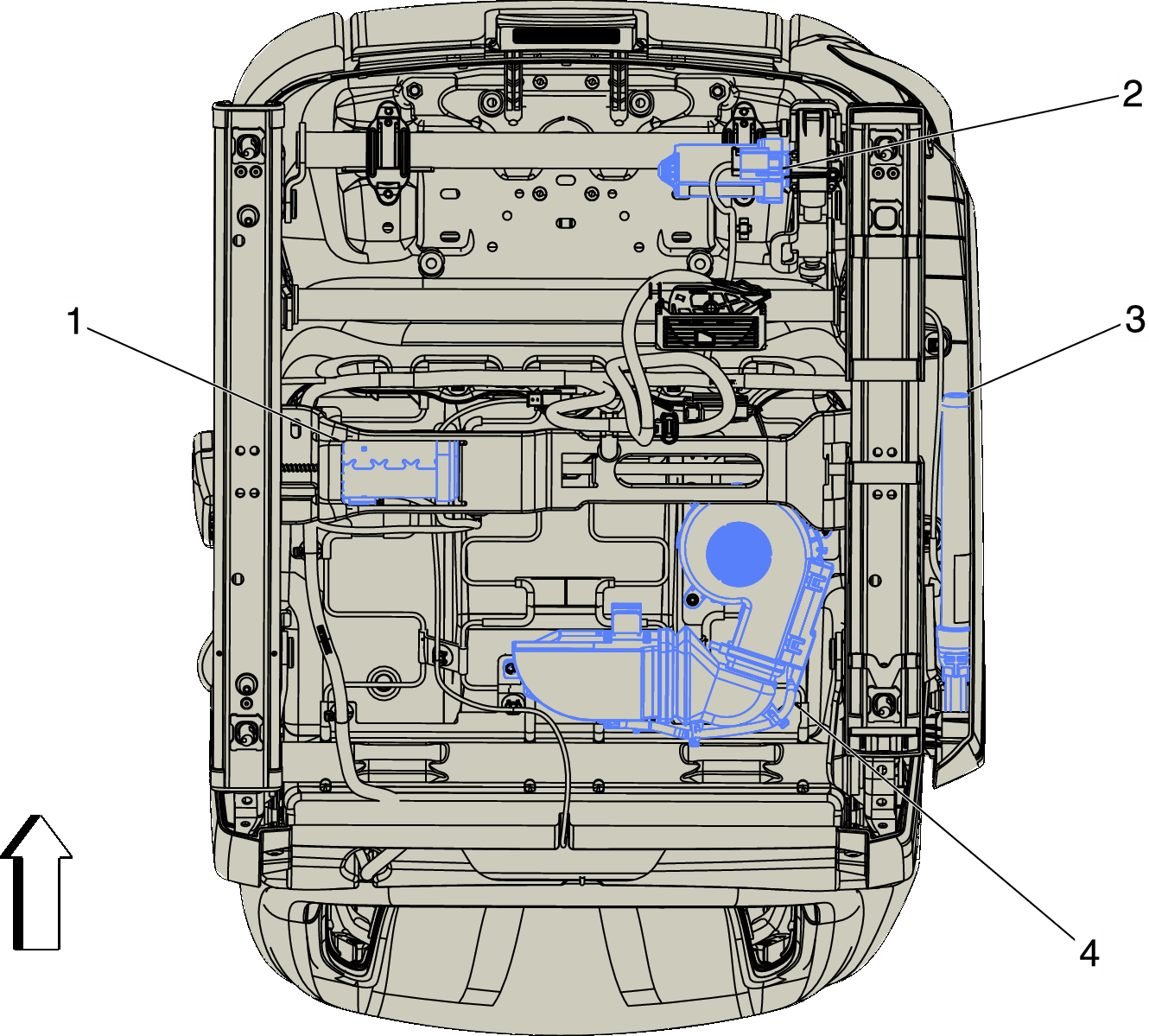

Fig 1: Bottom of Driver Seat Components
GM4006843Courtesy of GENERAL MOTORS COMPANY
