Left Side of Engine Compartment Components (LTG)

Left Side of Engine Compartment Components (LTG)

Items
1: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3 (LTG)
2: K20 Engine Control Module K20 Engine Control Module X1 (LTG)K20 Engine Control Module X2 (LTG)K20 Engine Control Module X3 (LTG)

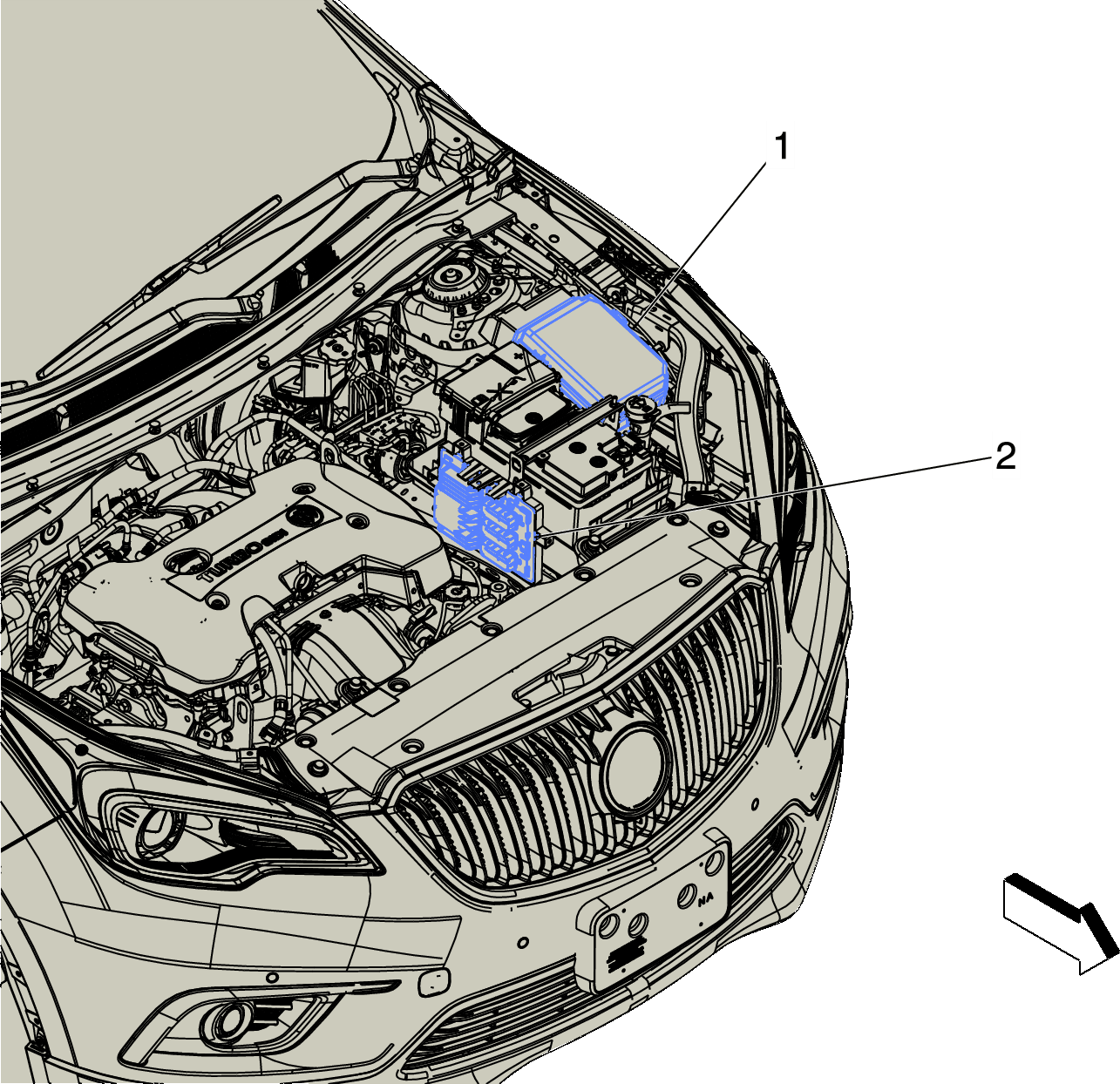

Fig 1: Left Side of Engine Compartment Components (LTG)
GM3953002Courtesy of GENERAL MOTORS COMPANY
