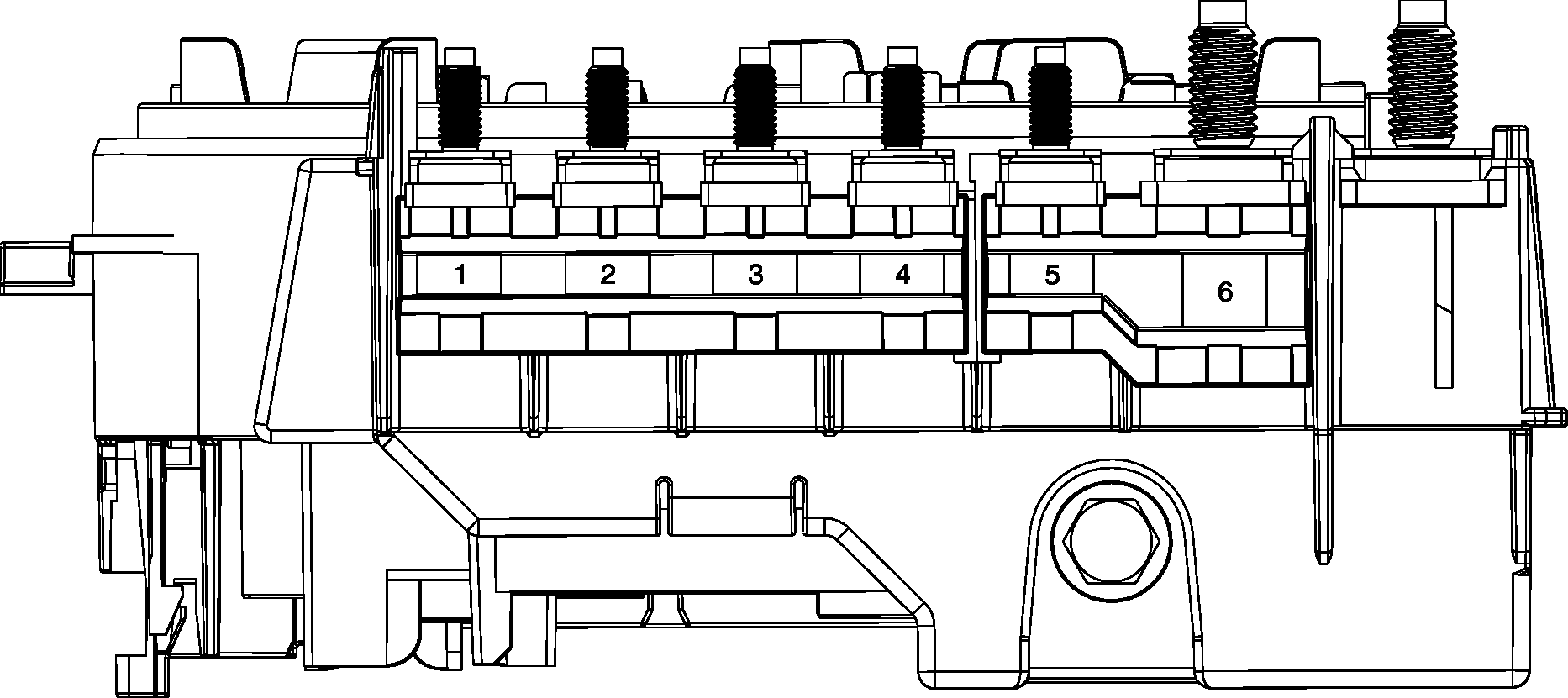

X50A Fuse Block - Underhood, Side View
X50A FUSE BLOCK - UNDERHOOD FUSE IDENTIFICATION
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1UB | 40 A | T19 Power Supply Transformer |
| 2 | - | F2UB | 100 A | Not Used |
| 3 | - | F3UB | 80 A | K43 Power Steering Control Module |
| 4 | - | F4UB | 80 A | G10 Cooling Fan Motor (LCV), G10L Cooling Fan Motor - Left (LTG) |
| 5 | - | F5UA | 80 A | G10R Cooling Fan Motor - Right (LTG) |
| 6 | - | F6UB Fuse | - | Not Used |
