Exhaust Muffler Replacement

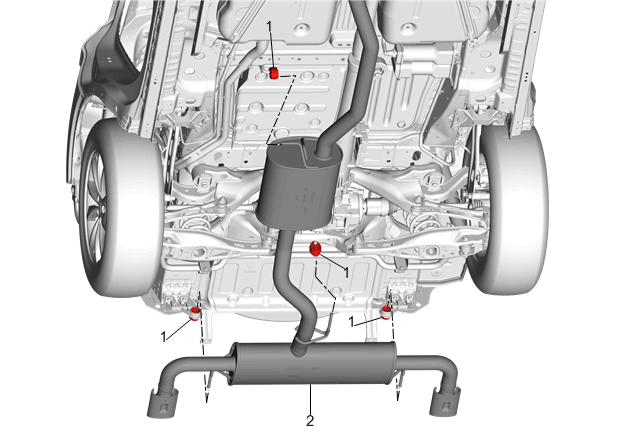

Fig 1: Exhaust Muffler
GM3909739Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Lifting and Jacking the Vehicle
  2. Exhaust Front Pipe Replacement (LTG) Exhaust Front Pipe Replacement (LCV) @Exhaust Muffler - Disconnect
1 Exhaust Isolator
2 Exhaust Muffler
