Parking Brake Switch Replacement

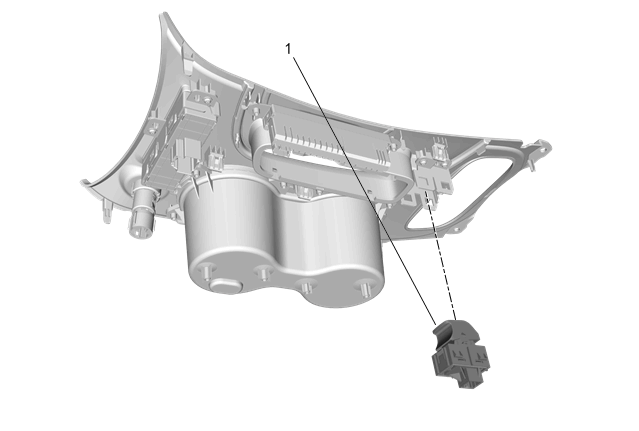

Fig 1: Parking Brake Switch
GM3923357Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Floor Console Trim Plate. Refer to Front Floor Console Trim Plate Replacement
1 Parking Brake Switch
