Front Side Door Window Regulator Replacement (Driver Side)

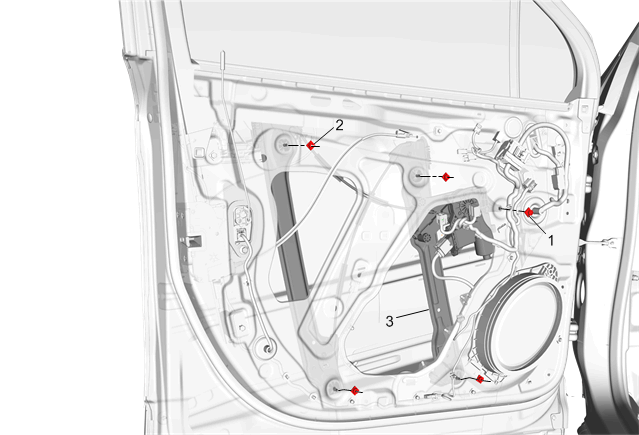

Fig 1: Front Side Door Window Regulator (Driver Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Armrest Bracket Replacement Remove the water deflector. Using the appropriate tool, push the front side door window sash clips outward, while pulling up on window to release the window from the sash clips. After detaching window from regulator, manually move window to the full up position and tape to frame. Disconnect the electrical connector.
1	Front Side Door Window Regulator Bolt CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Nut (Qty: 4) Tighten 11 N.m (97 lb in)
3	Front Side Door Window Regulator Procedure Transfer components as necessary. Window Motor Programming - Express Function
