Power Seats System Description and Operation: Notes
The driver and passenger 8 - way power seat systems each consist of the following components:
- Seat adjuster switch
- Seat horizontal motor
- Seat front vertical motor
- Seat rear vertical motor
- Seat recline motor
The 2-way power seat system consists of a seat adjuster switch and a seat vertical motor.
NOTE:

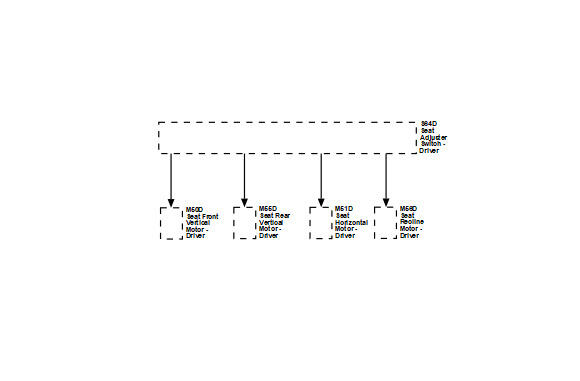

If equipped, the passenger seat block diagram is identical to the driver seat.
| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| M56D | M56D Seat Recline Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M50D | M50D Seat Front Vertical Motor - Driver |
