Memory Seats Description and Operation: Notes

The memory seat system consists of the following components:

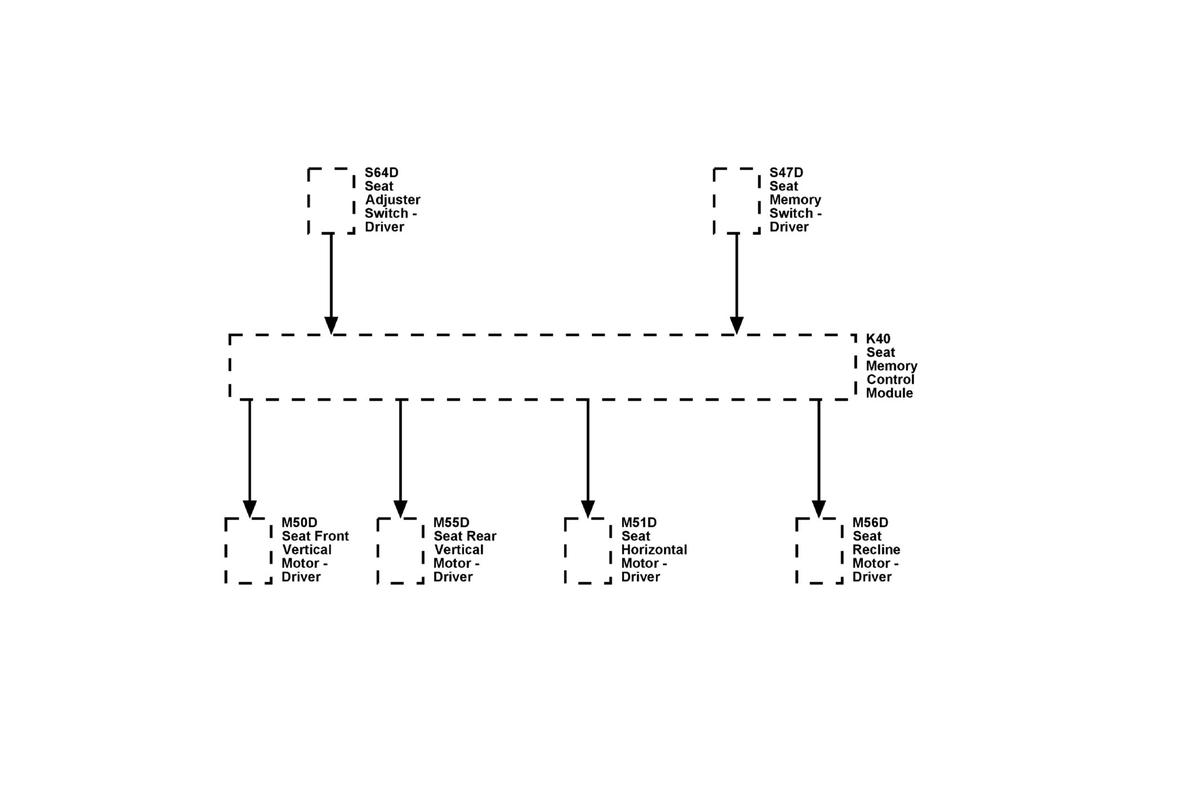

Fig 1: Memory Seat Block Diagram
GM3331208Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
S64D S64D Seat Adjuster Switch - Driver
S47D S47D Seat Memory Switch - Driver
K40 K40 Seat Memory Control Module
M56D M56D Seat Recline Motor - Driver
M51D M51D Seat Horizontal Motor - Driver
M55D M55D Seat Rear Vertical Motor - Driver
M50D M50D Seat Front Vertical Motor - Driver
