Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement

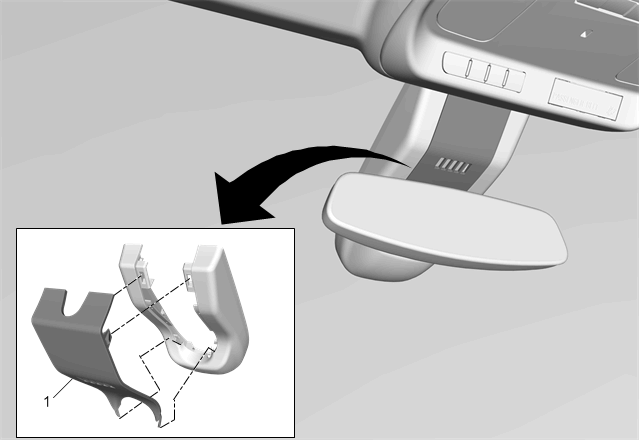

Fig 1: Windshield Multifunction Sensor Mount Bracket Cover Insert
GM3911167Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Multifunction Sensor Mount Bracket Cover Insert

Procedure

  1. Using a plastic trim tool, carefully pry downward on the cover to release from windshield.
  2. Squeeze tabs on insert and pull apart from cover.
