Safety Alert Seat (A45 with UEU, UHX or UGN)

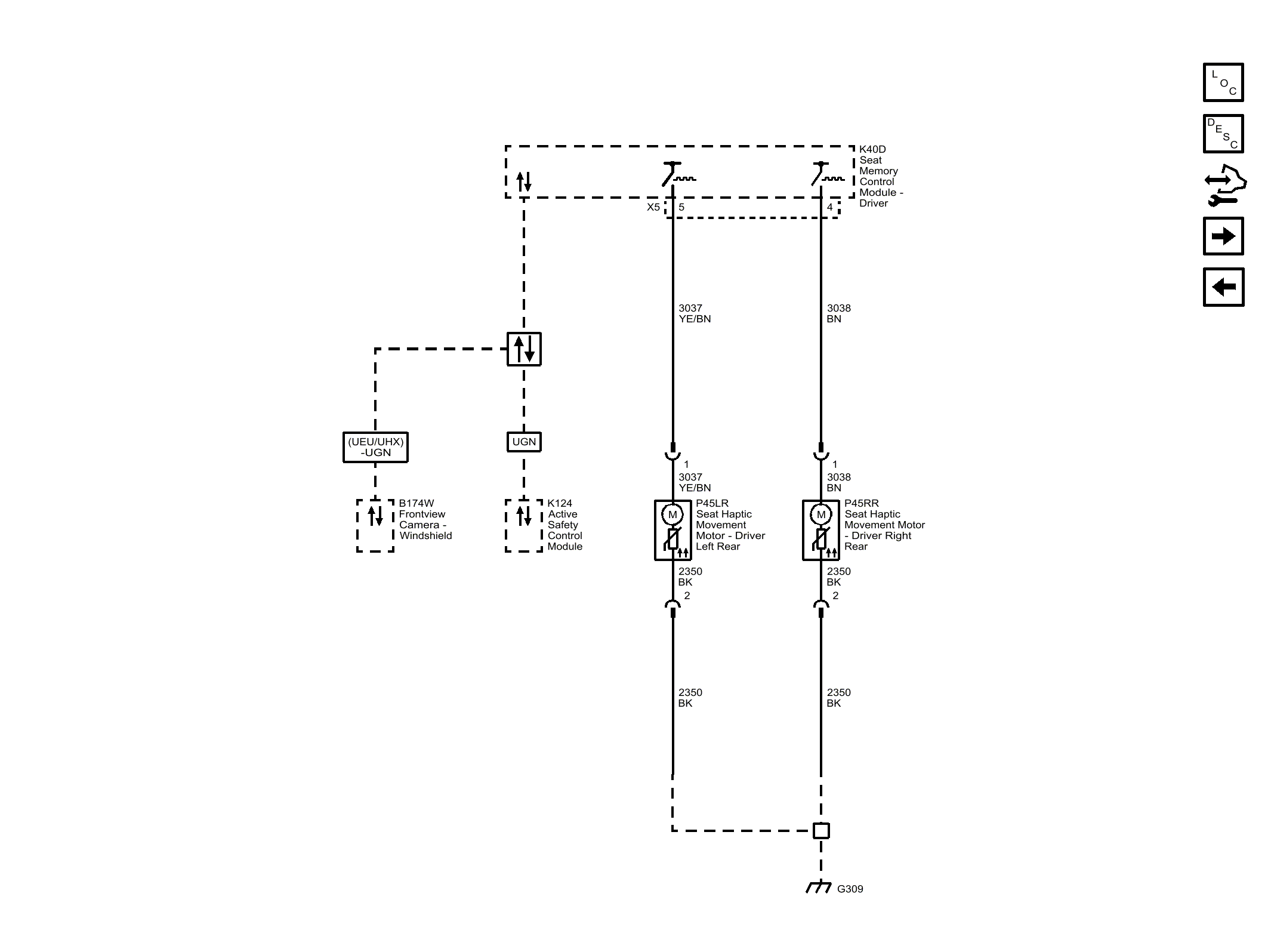

Fig 1: Safety Alert Seat (A45 with UEU, UHX or UGN)

GM4493070

Courtesy of GENERAL MOTORS COMPANY
