Park Assist - Rear Parking Assist Sensors

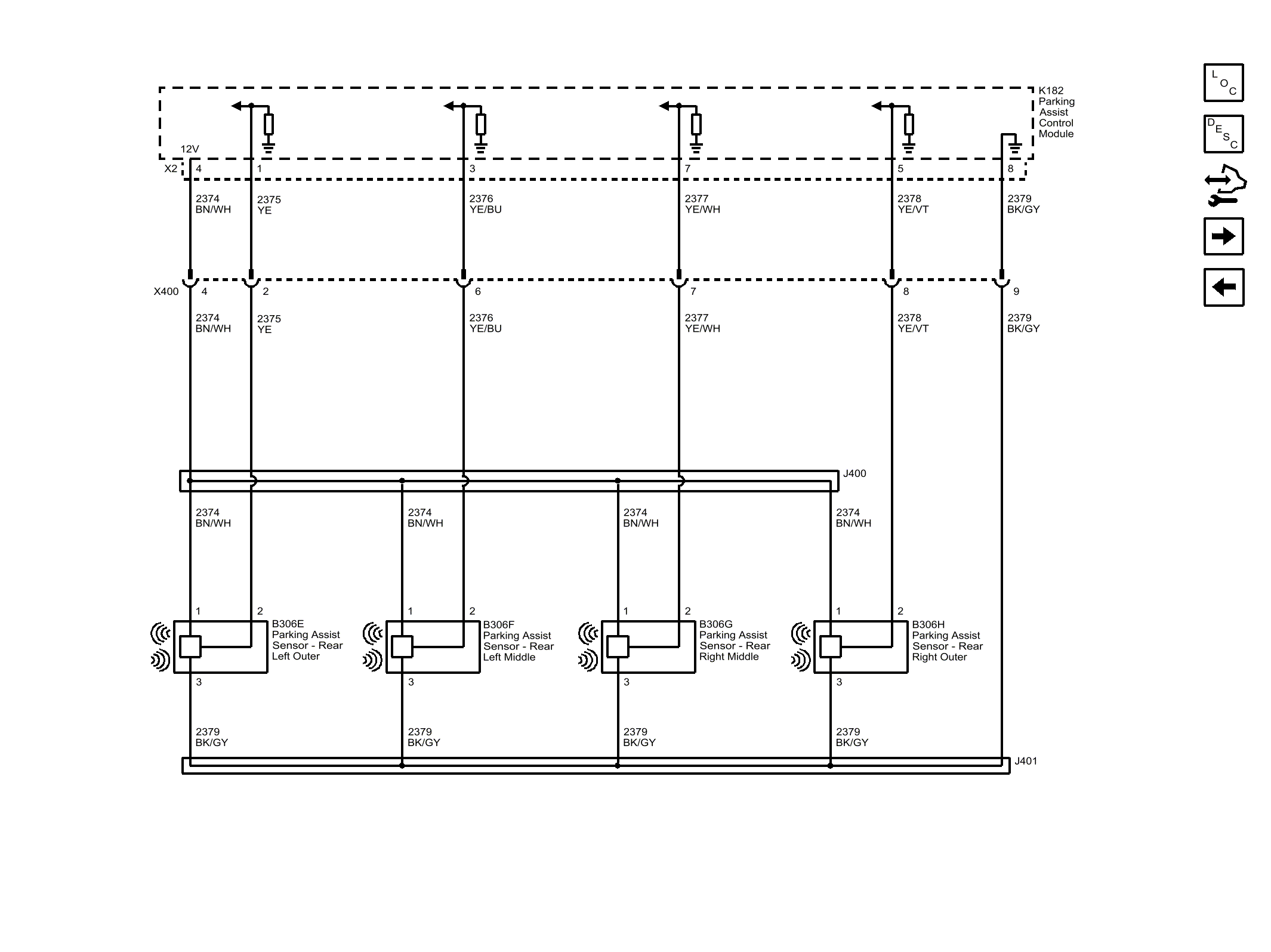

Fig 1: Park Assist - Rear Parking Assist Sensors

GM4493109

Courtesy of GENERAL MOTORS COMPANY
