Front Seat Lane Departure Warning Actuator Replacement

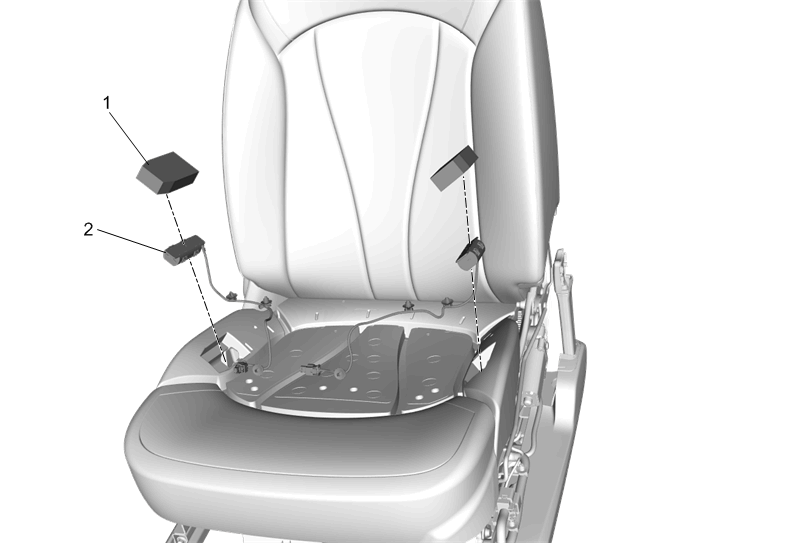

Fig 1: Front Seat Lane Departure Warning Actuator
GM4283098Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement
1 Front Seat Lane Departure Warning Actuator Pad
2 Front Seat Lane Departure Warning Actuator

Procedure

  1. Disconnect the electrical connector.
  2. Note the location and routing of the wiring harness to ensure proper reinstallation.
