Engine Control Module Bracket Replacement (LCV)

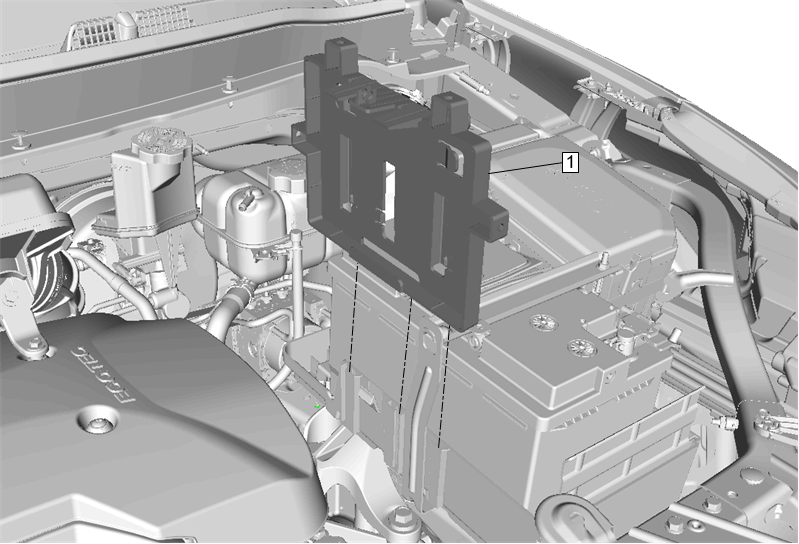

Fig 1: Engine Control Module Bracket
GM4527408Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Engine Control Module. Refer to Engine Control Module Replacement (LCV)
1 Engine Control Module Bracket

Procedure

  1. Remove harness from bracket.
  2. Release retaining tab to remove bracket from battery tray.
