Module Power, Ground, Serial Data, and Memory Controls (A45)

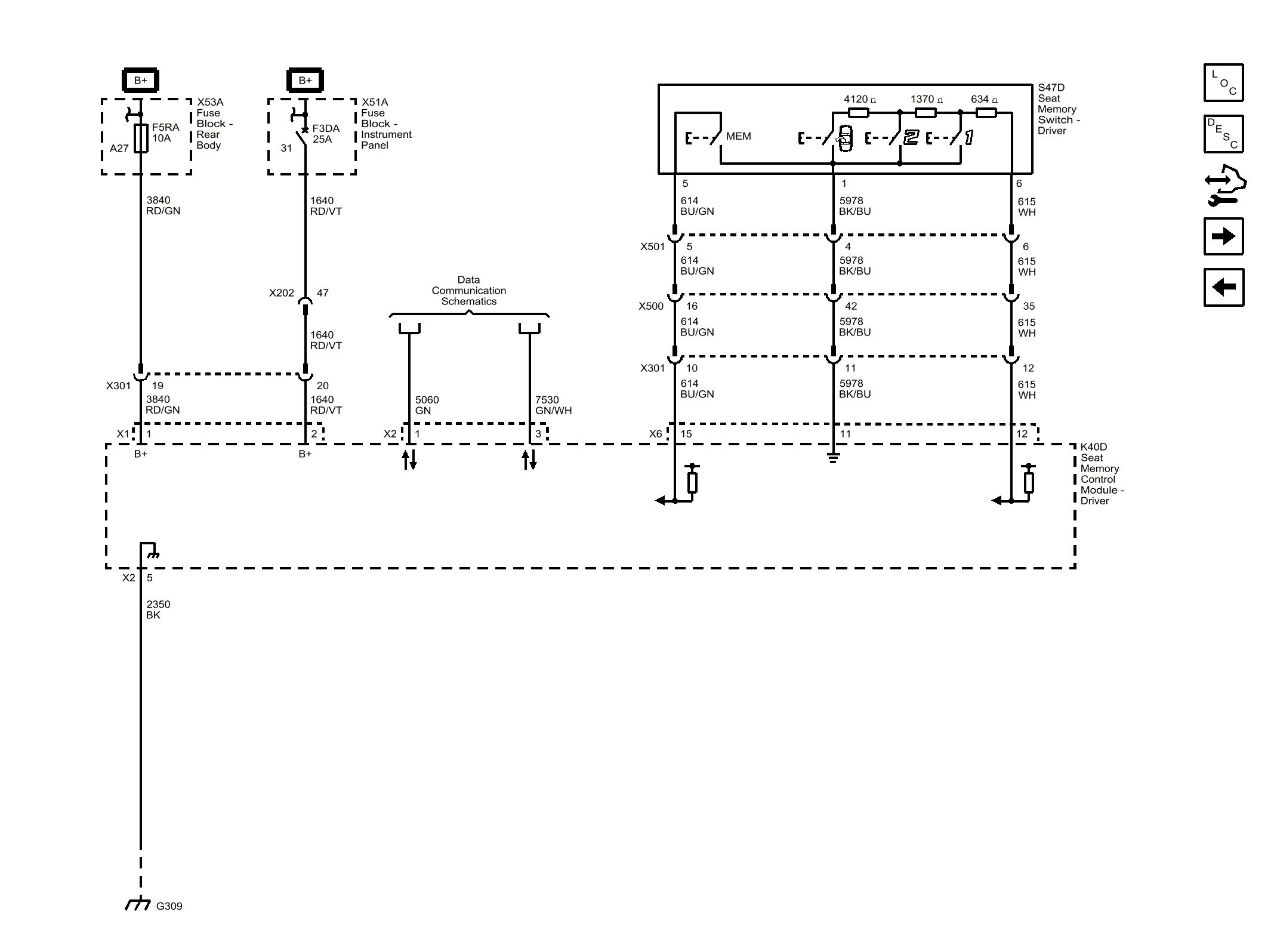

Fig 1: Module Power, Ground, Serial Data, and Memory Controls (A45)

GM4492650

Courtesy of GENERAL MOTORS COMPANY
