Windshield Washer Solvent Container Level Sensor Replacement

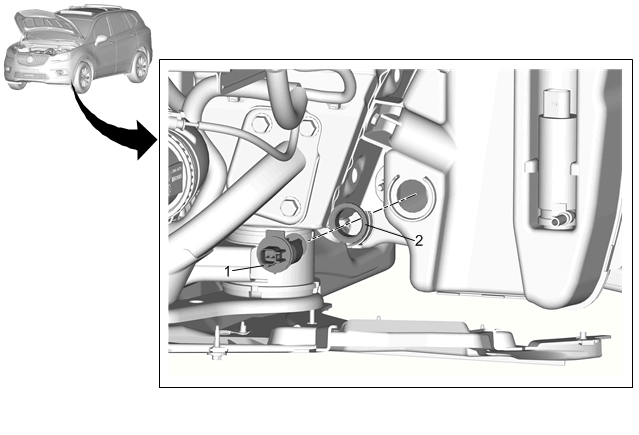

Fig 1: Windshield Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Procedure Disconnect the electrical connector. Using two appropriate tools placed under each side of the windshield washer solvent level sensor, disengage the level sensor from the windshield washer solvent container.
2	Windshield Washer Solvent Container Level Sensor Grommet Procedure Disconnect the electrical connector. Compress and remove the grommet from the front of the windshield washer solvent container. NOTE: Install a new headlamp washer pump grommet upon replacement of the headlamp washer pump. Upon installation of a new grommet, lubricate the exterior of the grommet with windshield washer solvent to assist with the installation of the grommet into the windshield washer container. Ensure the grommet is seated to the front side of the windshield washer solvent container.

Callout

Component Name

Procedure

Disconnect the electrical connector.
Using two appropriate tools placed under each side of the windshield washer solvent level sensor, disengage the level sensor from the windshield washer solvent container.

Windshield Washer Solvent Container Level Sensor Grommet

Procedure

Disconnect the electrical connector.
Compress and remove the grommet from the front of the windshield washer solvent container.

NOTE:

Install a new headlamp washer pump grommet upon replacement of the headlamp washer pump.

Upon installation of a new grommet, lubricate the exterior of the grommet with windshield washer solvent to assist with the installation of the grommet into the windshield washer container.
Ensure the grommet is seated to the front side of the windshield washer solvent container.
