Front Side Door Window Regulator Handle Replacement

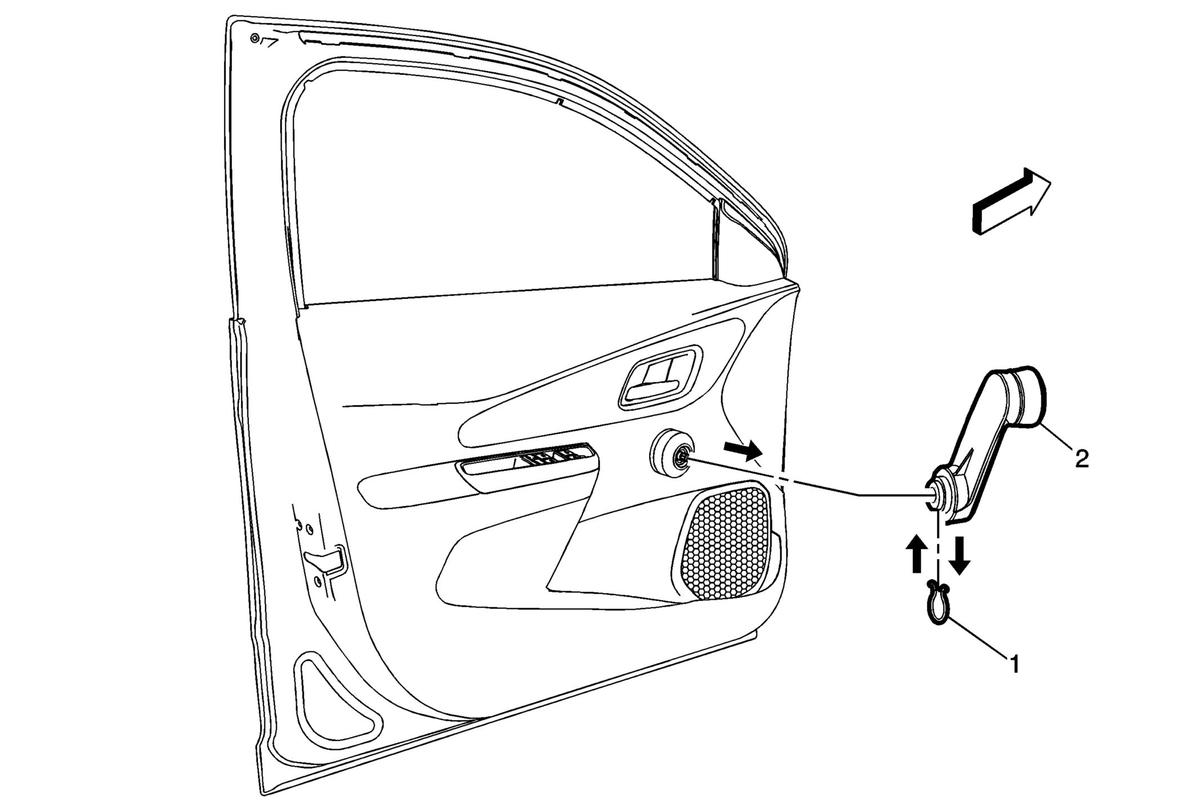

Fig 1: Front Side Door Window Regulator Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Window Regulator Handle Clip Procedure Use the appropriate tool, remove the clip and from handle.
2	Front Side Door Window Regulator Handle NOTE: Install the plastic spacer behind the window handle.
