Transfer Case Identification: Notes

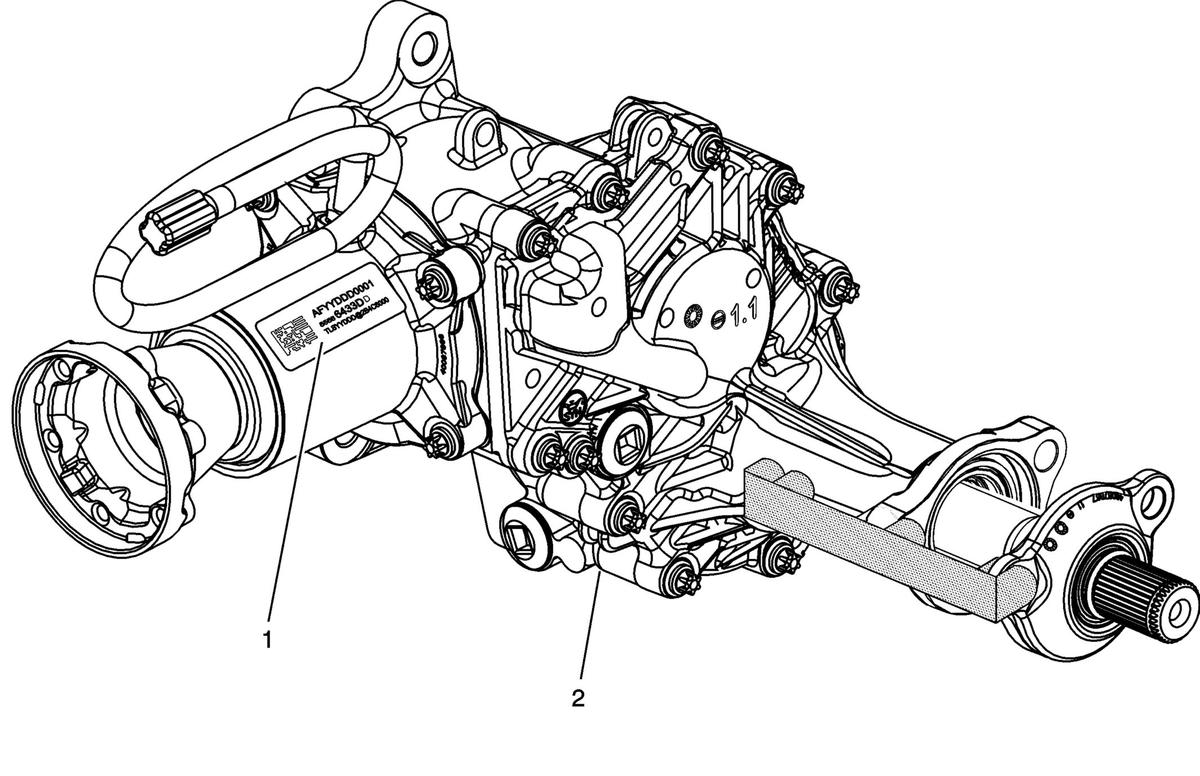

Fig 1: Transfer Case Identification Label Locations

Courtesy of GENERAL MOTORS COMPANY

The transfer case primary identification label (1) is located on the rear extension housing. The transfer case secondary identification stamping (2) is located on the bottom of the main housing.
